STM32MP135FAE7T - STMicroelectronics

Description: Arm® Cortex®-A7 up to 1 GHz, LCD-TFT, camera interface, 2×ETH, 2×CAN FD, 2×ADC, 24 timers, audio, crypto and adv. security

Download STM32MP135FAE7T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP135FAE7T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

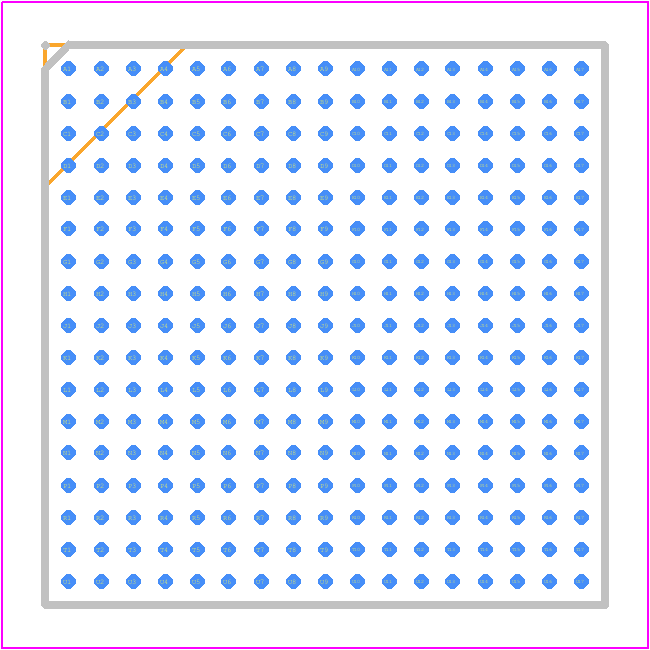

STM32MP135FAE7T - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 14X14 289L PITCH 0.8 MM-1
click to zoom
3D Models
STM32MP135FAE7T - STMicroelectronics - 3D model - BGA - LFBGA 14X14 289L PITCH 0.8 MM-1
click to zoom

STM32MP135FAE7T Details

  • Manufacturer Part Number:

    STM32MP135FAE7T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B289

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    56

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    289

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (words):

    172032

  • Seated Height-Max:

    1.7 mm

  • Speed:

    1000 MHz

  • Supply Current-Max:

    268 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.32 V

  • Supply Voltage-Nom:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP135FAE7T Frequently Asked Questions (FAQs)

  • The STM32MP135FAE7T can operate from -40°C to 125°C (junction temperature), but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The boot mode can be configured using the BOOT0 and BOOT1 pins. BOOT0 selects the boot mode (0: Flash memory, 1: System memory), and BOOT1 selects the boot device (0: Flash memory, 1: SD card or eMMC). Consult the datasheet for specific pin configurations.
  • The maximum clock frequency for the STM32MP135FAE7T is 650 MHz, but this can be adjusted using the clock configuration registers to optimize power consumption and performance.
  • The internal voltage regulator can be enabled by setting the VOS bit in the PWR_CR1 register. The regulator output voltage can be adjusted using the VOS_MODE bits in the PWR_CR1 register. Consult the datasheet for specific register settings.
  • The TrustZone security feature provides a secure environment for executing sensitive code and storing sensitive data. It allows for secure boot, secure firmware updates, and protection of sensitive assets like cryptographic keys and secure boot mechanisms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP135FAE7T Overview

Use the download button to access the STM32MP135FAE7T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
