STM32MP135FAF7T - STMicroelectronics

Description: Arm® Cortex®-A7 up to 1 GHz, LCD-TFT, camera interface, 2×ETH, 2×CAN FD, 2×ADC, 24 timers, audio, crypto and adv. security

Download STM32MP135FAF7T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP135FAF7T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

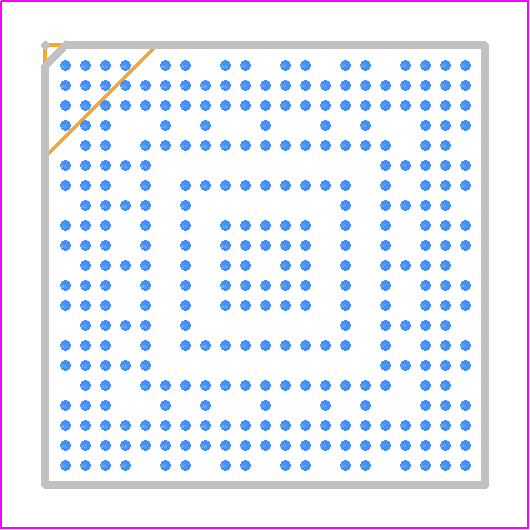

STM32MP135FAF7T - STMicroelectronics PCB footprint - BGA - BGA - TFBGA 11X11 320L PITCH 0.5 MM
click to zoom
3D Models
STM32MP135FAF7T - STMicroelectronics - 3D model - BGA - TFBGA 11X11 320L PITCH 0.5 MM
click to zoom

STM32MP135FAF7T Details

  • Manufacturer Part Number:

    STM32MP135FAF7T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B320

  • Length:

    11 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    56

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    320

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA320,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • RAM (words):

    172032

  • Seated Height-Max:

    1.2 mm

  • Speed:

    1000 MHz

  • Supply Current-Max:

    268 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.32 V

  • Supply Voltage-Nom:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP135FAF7T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32MP135FAF7T is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for optimal performance and reliability.
  • The clock tree for the STM32MP135FAF7T can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock configuration code for your specific application.
  • The maximum frequency for the Cortex-A7 core in the STM32MP135FAF7T is 650 MHz. However, the actual operating frequency may be lower depending on the specific application and power consumption requirements.
  • The TrustZone security features in the STM32MP135FAF7T can be used by dividing the system into two worlds: the Secure World and the Non-Secure World. The Secure World is used for secure boot, secure firmware updates, and secure data storage, while the Non-Secure World is used for the main application. STMicroelectronics provides a TrustZone-enabled software development kit (SDK) to help developers implement TrustZone security in their applications.
  • The STM32MP135FAF7T has 1 GB of DDR3L RAM and 128 MB of flash memory. Additionally, it has 128 KB of ROM and 64 KB of SRAM.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP135FAF7T Overview

Use the download button to access the STM32MP135FAF7T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors
