STM32MP151AAB3T - STMicroelectronics

Description: Arm® Cortex®-A7 800 MHz + Cortex®-M4 MPU, TFT, 35 comm. interfaces, 25 timers, adv. analog

Download STM32MP151AAB3T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP151AAB3T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

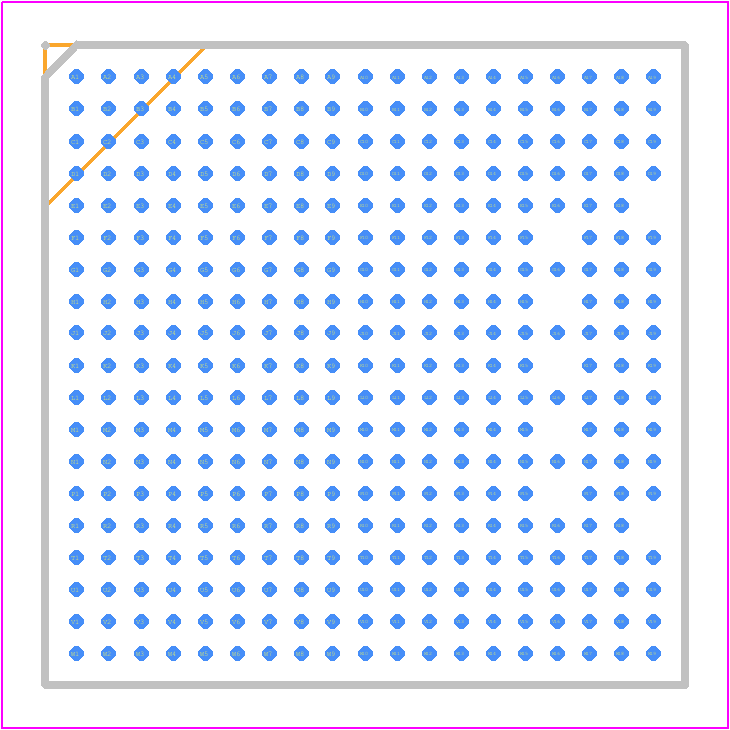

STM32MP151AAB3T - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 354 16x16x1.7 P 0.8 mm
click to zoom
3D Models
STM32MP151AAB3T - STMicroelectronics - 3D model - BGA - LFBGA 354 16x16x1.7 P 0.8 mm
click to zoom

STM32MP151AAB3T Details

  • Manufacturer Part Number:

    STM32MP151AAB3T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B354

  • Length:

    16 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    48

  • Number of Serial I/Os:

    8

  • Number of Terminals:

    354

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA354,19X19,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (words):

    724992

  • Seated Height-Max:

    1.29 mm

  • Speed:

    650 MHz

  • Supply Current-Max:

    940 mA

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.18 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP151AAB3T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for STM32MP151AAB3T is -40°C to 125°C (junction temperature). However, it's essential to note that the device can operate at a lower temperature range of -40°C to 85°C for commercial applications and -40°C to 105°C for industrial applications.
  • The clock tree configuration for STM32MP151AAB3T involves setting up the clock sources, PLLs, and clock dividers. You can use the STM32CubeMX tool to generate the clock configuration code or refer to the STM32MP151AAB3T reference manual for a detailed explanation of the clock tree architecture.
  • The maximum frequency of the Cortex-A7 core in STM32MP151AAB3T is 650 MHz. However, the actual operating frequency may vary depending on the system configuration, voltage, and temperature.
  • To optimize power consumption in STM32MP151AAB3T, you can use various techniques such as clock gating, voltage scaling, and power gating. Additionally, you can use the STM32 Power Consumption Analyzer tool to measure and optimize the power consumption of your application.
  • The main difference between the STM32MP151AAB3T and STM32MP153AAB3T is the presence of a Cortex-M4 core in the STM32MP153AAB3T, which is not available in the STM32MP151AAB3T. The STM32MP153AAB3T also has more peripherals and a larger internal memory.
