STM32MP151AAC3T - STMicroelectronics

Description: Arm® Cortex®-A7 800 MHz + Cortex®-M4 MPU, TFT, 35 comm. interfaces, 25 timers, adv. analog

Download STM32MP151AAC3T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP151AAC3T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

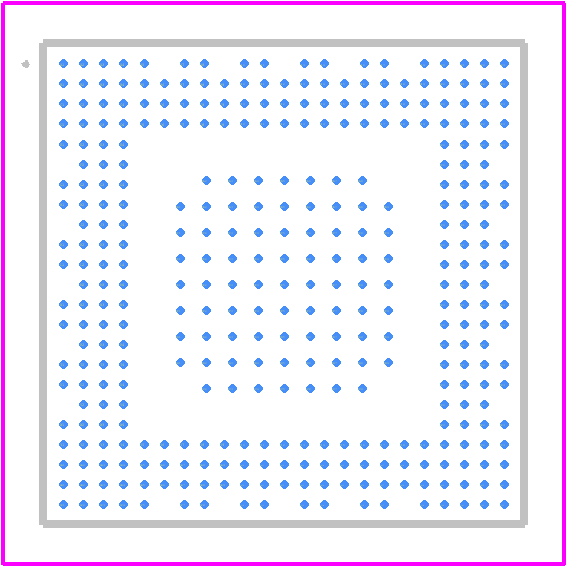

STM32MP151AAC3T - STMicroelectronics PCB footprint - Other - Other - TFBGA 361 12x12x1.2 P 0.5 mm
click to zoom
3D Models
STM32MP151AAC3T - STMicroelectronics - 3D model - Other - TFBGA 361 12x12x1.2 P 0.5 mm
click to zoom

STM32MP151AAC3T Details

  • Manufacturer Part Number:

    STM32MP151AAC3T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    48 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B361

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    48

  • Number of Serial I/Os:

    8

  • Number of Terminals:

    361

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA361,23X23,25/20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (words):

    724992

  • Seated Height-Max:

    1.2 mm

  • Speed:

    650 MHz

  • Supply Current-Max:

    940 mA

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.18 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP151AAC3T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32MP151AAC3T is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for commercial applications and -40°C to 105°C for industrial applications.
  • The clock tree for the STM32MP151AAC3T can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The tool allows you to select the clock sources, configure the clock dividers, and generate the clock configuration code for your application.
  • The maximum frequency for the Cortex-A7 core in the STM32MP151AAC3T is 650 MHz. However, the actual operating frequency may vary depending on the application and the power consumption requirements.
  • The TrustZone security features in the STM32MP151AAC3T can be used by dividing the system into two worlds: the Secure World and the Non-Secure World. The Secure World runs the trusted firmware and has access to the secure peripherals, while the Non-Secure World runs the non-trusted firmware and has access to the non-secure peripherals. The transition between the two worlds is controlled by the Secure Monitor Call (SMC) instruction.
