Please enter a minimum 3 letters or numbers
Technical Content
Part Image

STM32MP157AAB3 - STMicroelectronics

Description: Arm® dual Cortex®-A7 800 MHz + Cortex®-M4 MPU, 3D GPU, TFT/DSI, 37 comm. interfaces, 29 timers, adv. analog

Download STM32MP157AAB3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP157AAB3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

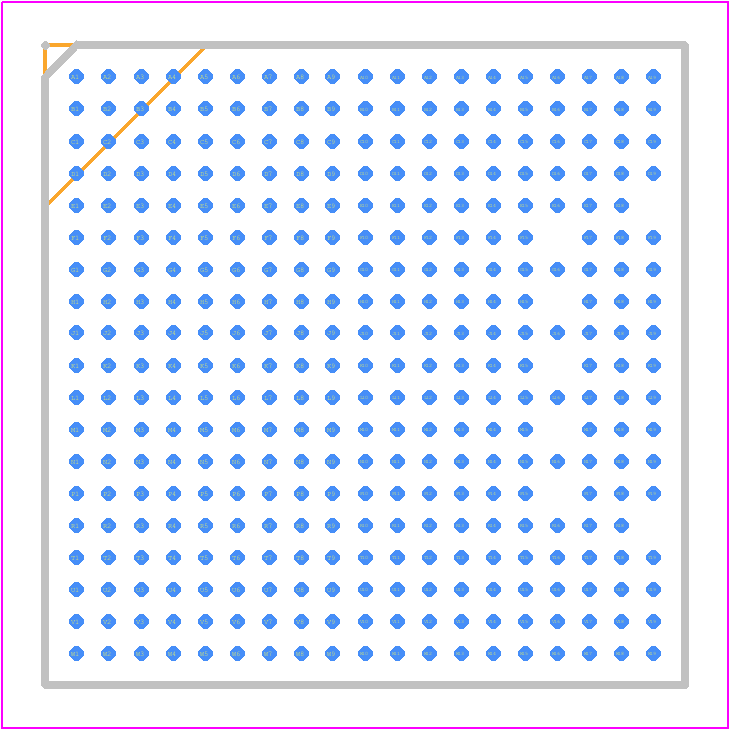

STM32MP157AAB3 - STMicroelectronics PCB footprint - BGA - BGA - 354 bega
click to zoom
3D Models
STM32MP157AAB3 - STMicroelectronics - 3D model - BGA - 354 bega
click to zoom

STM32MP157AAB3 Details

  • Manufacturer Part Number:

    STM32MP157AAB3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Address Bus Width:

    16

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    64 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B354

  • Length:

    16 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    48

  • Number of Terminals:

    354

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA354,19X19,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (words):

    724992

  • Seated Height-Max:

    1.29 mm

  • Speed:

    650 MHz

  • Supply Current-Max:

    1000 mA

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    0.85 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP157AAB3 Frequently Asked Questions (FAQs)

  • The STM32MP157AAB3 can operate in a temperature range of -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The clock tree for the STM32MP157AAB3 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock configuration code for your specific application.
  • The maximum frequency for the STM32MP157AAB3's CPU is 650 MHz, while the maximum frequency for the peripherals varies depending on the peripheral. For example, the maximum frequency for the SPI peripheral is 100 MHz, while the maximum frequency for the I2C peripheral is 1 MHz.
  • To optimize power consumption for the STM32MP157AAB3, you can use the STM32 Power Consumption Optimization (PCO) tool, which provides guidance on how to minimize power consumption based on your specific application requirements. Additionally, you can use the STM32MP157AAB3's low-power modes, such as Sleep and Stop modes, to reduce power consumption when the device is not actively processing data.
  • The STM32MP157AAB3 has up to 1 GB of DDR3L RAM and up to 128 MB of Flash memory, depending on the specific device variant.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP157AAB3 Overview

Use the download button to access the STM32MP157AAB3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Suggested Parts

If you searched for STM32MP157AAB3, you might also be interested in these parts:
Part Number
STM32G030F6P6
STPMIC1APQR
STM32G030C8T6
STM32F411CEU6
STM32G030F6P6TR
TL494CD
ESP32-WROOM-32D (4MB PS)
STM32F407ZET6
STM32H743BIT6

Parts related to STM32MP157AAB3

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
