STM32MP157FAA1 - STMicroelectronics

Description: Arm® dual Cortex®-A7 800 MHz + Cortex®-M4 MPU, 3D GPU, TFT/DSI, 37 comm. interfaces, 29 timers, adv. analog, crypto

Download STM32MP157FAA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP157FAA1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

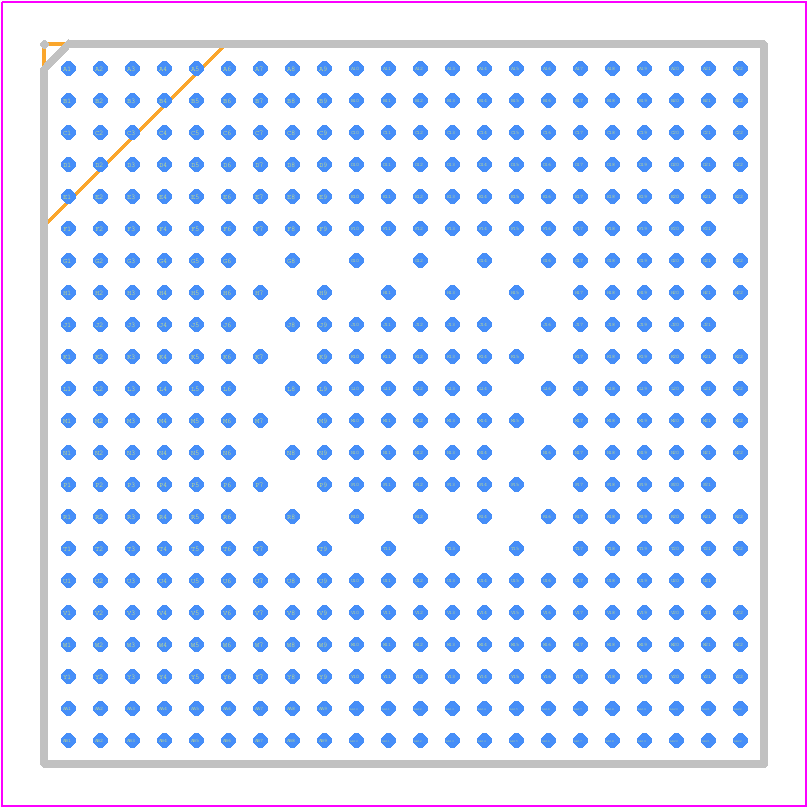

STM32MP157FAA1 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA - 448 balls, 18x18 mm, 0.8 mm pitch, low profile fine pitch ball grid array mechanical data
click to zoom
3D Models
STM32MP157FAA1 - STMicroelectronics - 3D model - BGA - LFBGA - 448 balls, 18x18 mm, 0.8 mm pitch, low profile fine pitch ball grid array mechanical data
click to zoom

STM32MP157FAA1 Details

  • Manufacturer Part Number:

    STM32MP157FAA1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2020-02-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP157FAA1 Frequently Asked Questions (FAQs)

  • The STM32MP157FAA1 can operate in a temperature range of -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The clock tree for the STM32MP157FAA1 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock configuration code for your specific application.
  • The maximum frequency for the STM32MP157FAA1's CPU is 650 MHz, while the maximum frequency for the peripherals varies depending on the specific peripheral. Refer to the datasheet for specific peripheral frequencies.
  • To optimize power consumption for the STM32MP157FAA1, use the low-power modes (Sleep, Stop, and Standby) provided by the microcontroller. Additionally, use the Power Consumption Optimization (PCO) tool provided by STMicroelectronics to analyze and optimize power consumption for your specific application.
  • The STM32MP157FAA1 has up to 1 GB of DDR3L RAM and up to 128 MB of Flash memory, depending on the specific package and configuration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP157FAA1 Overview

Use the download button to access the STM32MP157FAA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
