STM32MP157FAB1 - STMicroelectronics

Description: Arm® dual Cortex®-A7 800 MHz + Cortex®-M4 MPU, 3D GPU, TFT/DSI, 37 comm. interfaces, 29 timers, adv. analog, crypto

Download STM32MP157FAB1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP157FAB1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

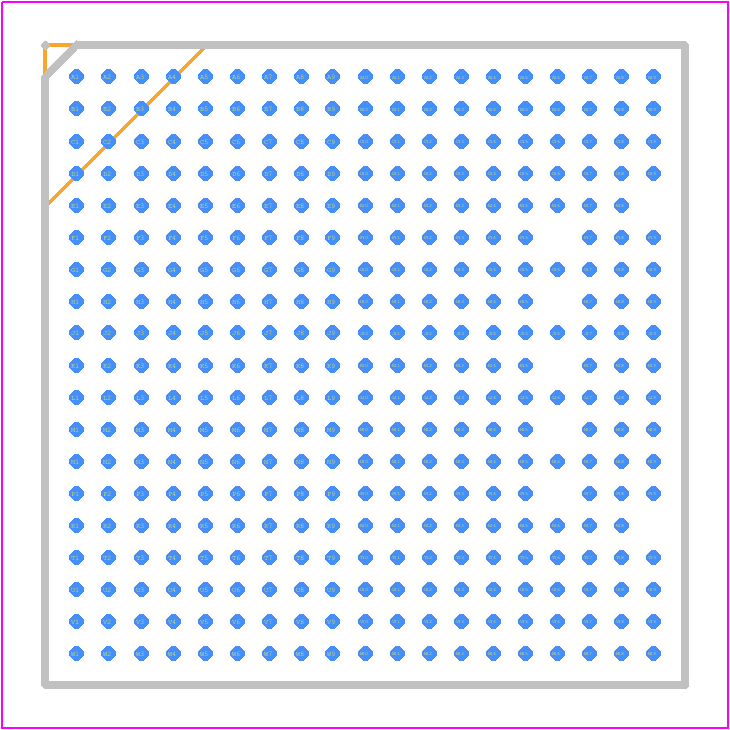

STM32MP157FAB1 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA - 354balls, 16x16 mm, 0.8 mm pitch, low profile fine pitch ball grid array package outline
click to zoom
3D Models
STM32MP157FAB1 - STMicroelectronics - 3D model - BGA - LFBGA - 354balls, 16x16 mm, 0.8 mm pitch, low profile fine pitch ball grid array package outline
click to zoom

STM32MP157FAB1 Details

  • Manufacturer Part Number:

    STM32MP157FAB1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2020-02-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP157FAB1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for STM32MP157FAB1 is -40°C to 125°C (junction temperature). However, the commercial temperature range is 0°C to 85°C.
  • The boot mode of STM32MP157FAB1 can be configured through the BOOT pins (BOOT0 and BOOT1) and the user option bytes. The boot mode can be set to boot from the internal flash, external flash, or SD card.
  • The maximum clock frequency of STM32MP157FAB1 is 650 MHz for the Cortex-A7 core and 209 MHz for the Cortex-M4 core.
  • Power consumption in STM32MP157FAB1 can be optimized by using the low-power modes (Sleep, Stop, and Standby), reducing the clock frequency, turning off unused peripherals, and using the power-saving features of the device.
  • Yes, STM32MP157FAB1 can be used with an external crystal oscillator. The device has an internal oscillator, but an external crystal oscillator can be used for higher accuracy and stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP157FAB1 Overview

Use the download button to access the STM32MP157FAB1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
