STM32MP157FAC1 - STMicroelectronics

Description: MPU with Arm Dual Cortex-A7 800 MHz, Arm Cortex-M4 real-time coprocessor, 3D GPU, TFT/MIPI DSI displays, FD-CAN, Secure boot and Cryptography

Download STM32MP157FAC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP157FAC1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

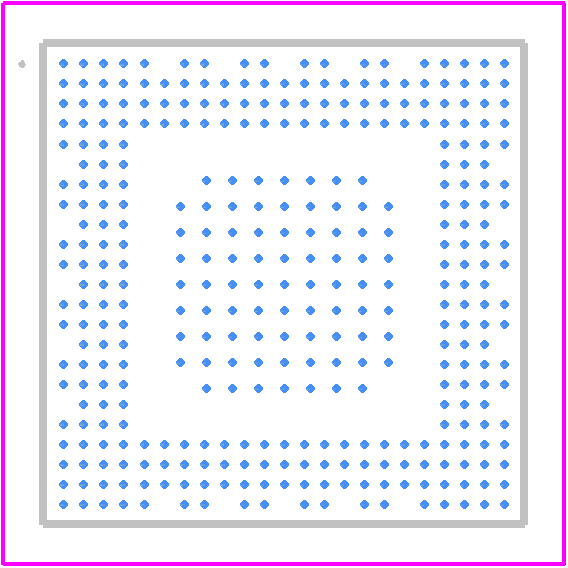

STM32MP157FAC1 - STMicroelectronics PCB footprint - Other - Other - STM32MP157FAC1-3
click to zoom
3D Models
STM32MP157FAC1 - STMicroelectronics - 3D model - Other - STM32MP157FAC1-3
click to zoom

STM32MP157FAC1 Details

  • Manufacturer Part Number:

    STM32MP157FAC1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2020-02-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Additional Feature:

    TERMPITCH-MAX

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    64 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B361

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    48

  • Number of Serial I/Os:

    10

  • Number of Terminals:

    361

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA361,23X23,25/20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (words):

    724992

  • Seated Height-Max:

    1.2 mm

  • Speed:

    800 MHz

  • Supply Current-Max:

    1050 mA

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.3 V

  • Supply Voltage-Nom:

    1.34 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP157FAC1 Frequently Asked Questions (FAQs)

  • The STM32MP157FAC1 can operate in a temperature range of -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The clock tree for the STM32MP157FAC1 can be configured using the Clock Control Register (CKR) and the PLL Clock Register (PLLCKR). The clock tree is divided into three domains: the system clock (SYSCLK), the peripheral clock (PCLK), and the HSE clock (HSECLK). The clock configuration depends on the specific application and the required clock frequencies.
  • The maximum frequency for the STM32MP157FAC1 is 650 MHz for the Arm Cortex-A7 core and 209 MHz for the Arm Cortex-M4 core.
  • The STM32MP157FAC1 has a TrustZone-enabled Arm Cortex-A7 core, which provides a secure environment for executing trusted code. To use the TrustZone security features, you need to configure the TrustZone controller, set up the secure and non-secure regions, and use the TrustZone-enabled peripherals. You can refer to the STM32MP157FAC1 TrustZone programming manual for more information.
  • Yes, the STM32MP157FAC1 has an external memory interface (EMI) that allows you to connect external memory devices such as DDR3, DDR4, or LPDDR3. The EMI supports a maximum bandwidth of 3200 MT/s and a maximum capacity of 4 GB.
