STM32MP157FAD1 - STMicroelectronics

Description: Arm® dual Cortex®-A7 800 MHz + Cortex®-M4 MPU, 3D GPU, TFT/DSI, 37 comm. interfaces, 29 timers, adv. analog, crypto

Download STM32MP157FAD1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP157FAD1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

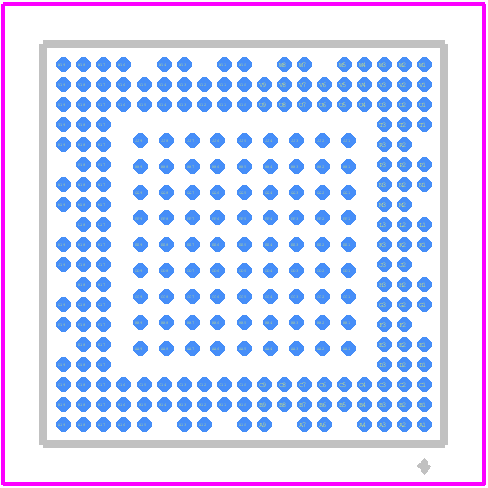

STM32MP157FAD1 - STMicroelectronics PCB footprint - Other - Other - STM32MP157FAD1-3
click to zoom
3D Models
STM32MP157FAD1 - STMicroelectronics - 3D model - Other - STM32MP157FAD1-3
click to zoom

STM32MP157FAD1 Details

  • Manufacturer Part Number:

    STM32MP157FAD1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2020-02-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

STM32MP157FAD1 Frequently Asked Questions (FAQs)

  • The STM32MP157FAD1 can operate in a temperature range of -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The clock tree for the STM32MP157FAD1 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock configuration code for your specific application.
  • The maximum frequency for the STM32MP157FAD1's CPU is 650 MHz, while the maximum frequency for the peripherals varies depending on the peripheral. For example, the maximum frequency for the SPI peripheral is 100 MHz.
  • To optimize power consumption for the STM32MP157FAD1, use the low-power modes provided by the microcontroller, such as Sleep mode, Stop mode, and Standby mode. Additionally, use the Power Consumption Optimization (PCO) tool provided by STMicroelectronics to analyze and optimize power consumption for your specific application.
  • The STM32MP157FAD1 has up to 1 GB of DDR3L RAM and up to 128 MB of Flash memory.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP157FAD1 Overview

Use the download button to access the STM32MP157FAD1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microprocessors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
