STM32MP253FAL3 - STMicroelectronics

STM32MP253FAL3 Details

• Manufacturer Part Number:

  STM32MP253FAL3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

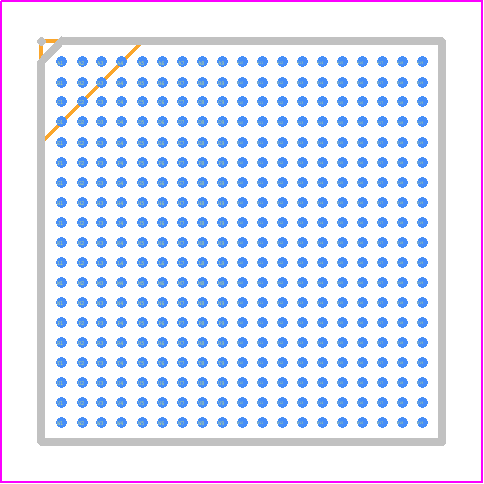

• Package Description:

  VFBGA-361

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.30

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Additional Feature:

  USB3.0

• Bit Size:

  64

• Boundary Scan:

  YES

• Clock Frequency-Max:

  48 MHz

• Format:

  FLOATING-POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B361

• Length:

  10 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  52

• Number of Serial I/Os:

  13

• Number of Terminals:

  361

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA361,19X19,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• RAM (words):

  827392

• Seated Height-Max:

  1 mm

• Speed:

  400 MHz

• Supply Current-Max:

  1200 mA

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
