STM32W108C8U64TR - STMicroelectronics

Description: RF Microcontrollers - MCU 32BIT ARM Cortex M3 IEEE 802.15.4 64kB

Download STM32W108C8U64TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

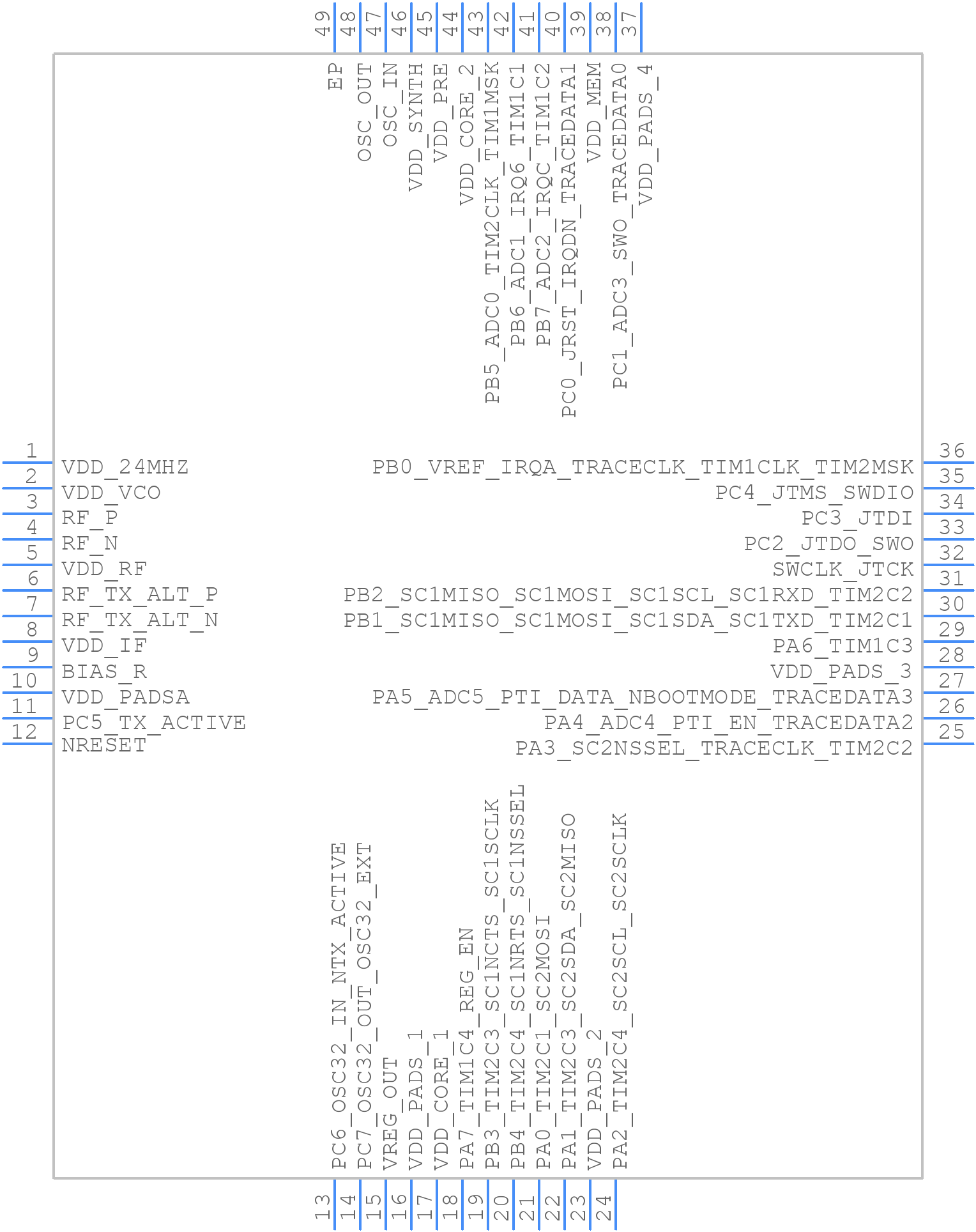

STM32W108C8U64TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32W108C8U64TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-48 (7 x 7 mm)_
click to zoom
3D Models
STM32W108C8U64TR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-48 (7 x 7 mm)_
click to zoom

STM32W108C8U64TR Details

  • Manufacturer Part Number:

    STM32W108C8U64TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M3

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Speed:

    24 MHz

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

STM32W108C8U64TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32W108C8U64TR is -40°C to 85°C (industrial grade) and -40°C to 105°C (extended grade).
  • The clock speed of the STM32W108C8U64TR can be configured using the Clock Control Register (RCC) and the Power Management Unit (PMU). The clock speed can be set to 32 kHz, 16 MHz, or 64 MHz using the HSE (High-Speed External) clock, LSE (Low-Speed External) clock, or the internal HSI (High-Speed Internal) clock.
  • The maximum current consumption of the STM32W108C8U64TR is approximately 350 mA at 64 MHz with all peripherals enabled, and 20 mA in low-power mode (Stop mode).
  • The STM32W108C8U64TR can be programmed using the ST-Link/V2 debugger/programmer, which is a USB-based tool that provides in-circuit debugging and programming capabilities. The microcontroller can also be programmed using other third-party tools and software development environments.
  • The flash memory endurance of the STM32W108C8U64TR is 10,000 erase cycles and 100,000 write cycles per page.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32W108C8U64TR Overview

Use the download button to access the STM32W108C8U64TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
