STM32W108CBU63TR - STMicroelectronics

Description: RF Microcontrollers - MCU 32BIT ARM Cortex M3 IEEE 802.15.4 64kB

Download STM32W108CBU63TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

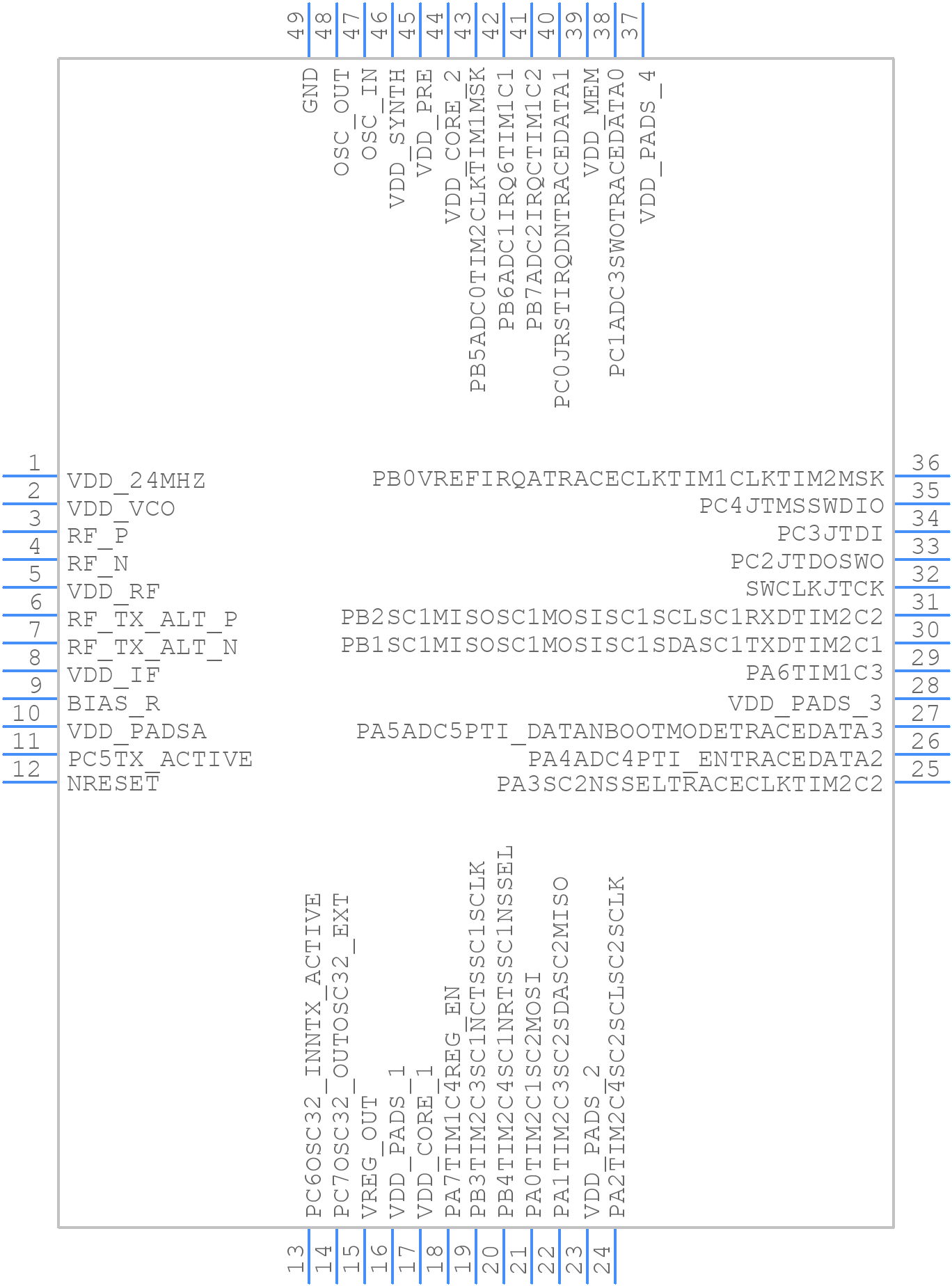

STM32W108CBU63TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32W108CBU63TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN48 - 48-lead, 7x7 mm, 0.5 mm _2020
click to zoom
3D Models
STM32W108CBU63TR - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN48 - 48-lead, 7x7 mm, 0.5 mm _2020
click to zoom

STM32W108CBU63TR Details

  • Manufacturer Part Number:

    STM32W108CBU63TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M3

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Speed:

    24 MHz

  • Supply Current-Max:

    150 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    RFSoC
