Part Image

STM32W108HBU63 - STMicroelectronics

Description: --

Download STM32W108HBU63 Model

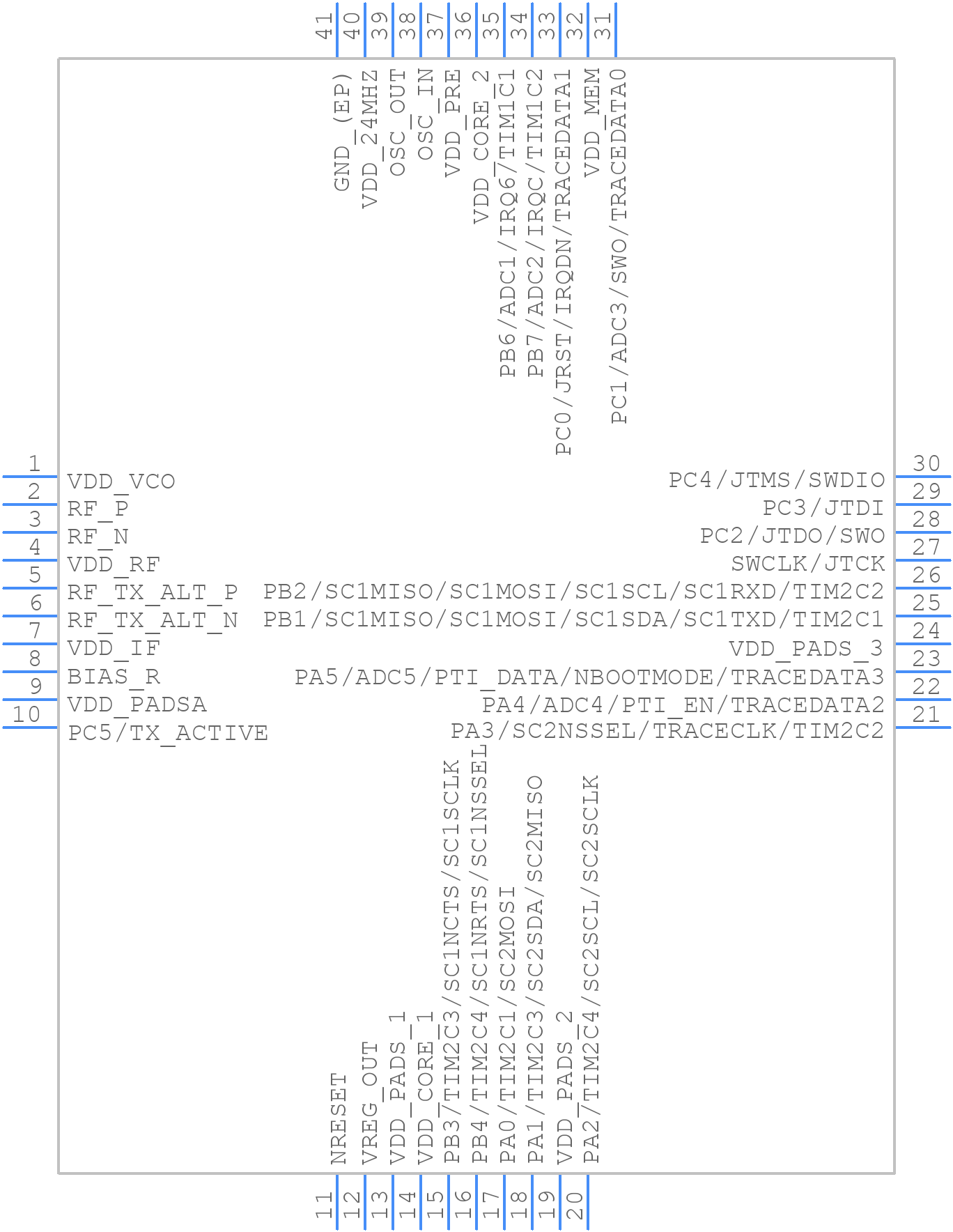

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STM32W108HBU63 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN40
click to zoom
3D Models
STM32W108HBU63 - STMicroelectronics  - 3D model - Quad Flat No-Lead - VFQFPN40
click to zoom

STM32W108HBU63 Details

  • Manufacturer Part Number:

    STM32W108HBU63

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    VFQFPN

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    9.6

  • YTEOL:

    0

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M3

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    150 mA

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.18 V

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32W108HBU63 Overview

Use the download button to access the STM32W108HBU63 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
