STM32W108HBU63TR - STMicroelectronics

Description: RF System on a Chip - SoC 32BIT ARM Cortex M3 IEEE 802.15.4 64kB

Download STM32W108HBU63TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

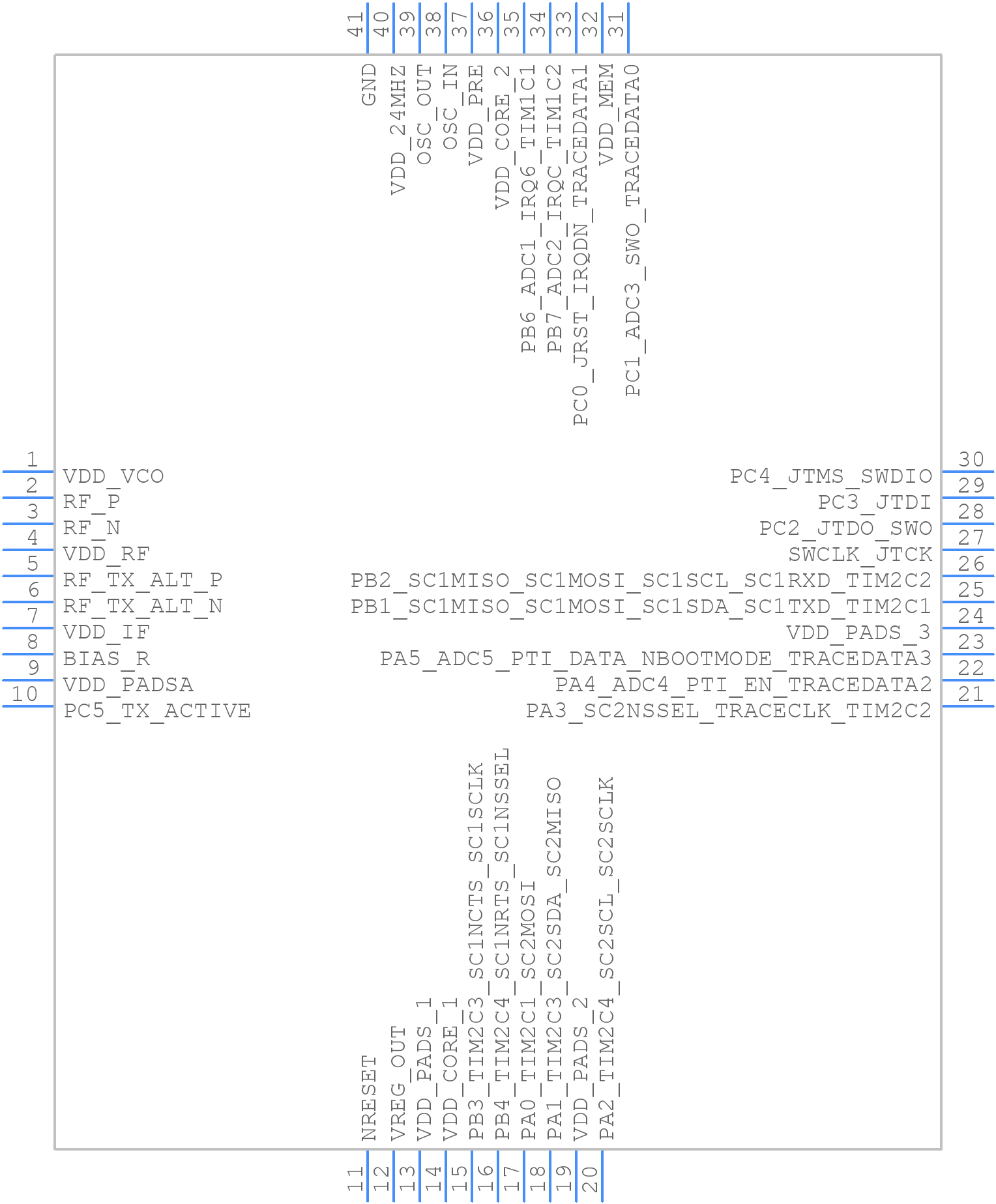

Symbol
STM32W108HBU63TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32W108HBU63TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN40
click to zoom
3D Models
STM32W108HBU63TR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN40
click to zoom

STM32W108HBU63TR Details

  • Manufacturer Part Number:

    STM32W108HBU63TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M3

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Speed:

    24 MHz

  • Supply Current-Max:

    150 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

STM32W108HBU63TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32W108HBU63TR is -40°C to 85°C, but it can be extended to -40°C to 105°C for some specific applications with some limitations.
  • The clock system for the STM32W108HBU63TR can be configured using the Clock Control Register (RCC_CR) and the Clock Configuration Register (RCC_CFGR). You need to enable the High-Speed Internal Clock (HSI) or the External Clock (HSE) and then configure the clock prescalers to set the desired clock frequency.
  • The maximum current consumption of the STM32W108HBU63TR depends on the operating mode and the clock frequency. In Run mode, the maximum current consumption is around 350 mA at 32 MHz with all peripherals enabled. In Low Power Run mode, the maximum current consumption is around 150 mA at 32 MHz with some peripherals disabled.
  • The ADC on the STM32W108HBU63TR can be used by configuring the ADC clock, enabling the ADC channel, and setting the ADC resolution and conversion mode. You can use the ADC interrupts or DMA to read the converted data.
  • Yes, the STM32W108HBU63TR has a built-in USB OTG_FS (On-The-Go Full-Speed) interface that can be used as a USB device. You need to configure the USB clock, enable the USB interface, and implement the USB device stack to communicate with a USB host.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32W108HBU63TR Overview

Use the download button to access the STM32W108HBU63TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
