STM32WB09TEF7TR - STMicroelectronics

Description: Ultra-low power wireless 32-bit MCU Arm®-based Cortex®-M0+ with Bluetooth® Low Energy and 2.4 GHz radio solution

Download STM32WB09TEF7TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

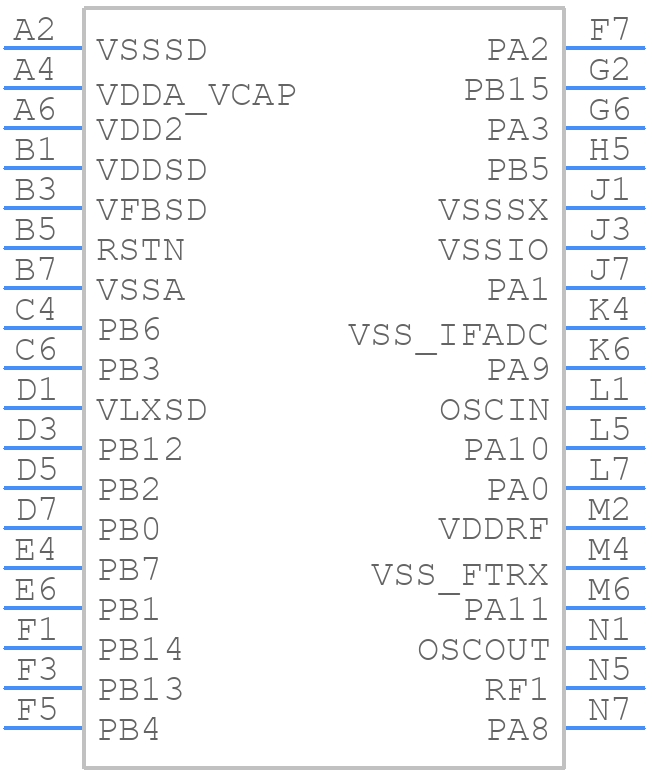

STM32WB09TEF7TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32WB09TEF7TR - STMicroelectronics PCB footprint - Other - Other - WLCSP36
click to zoom
3D Models
STM32WB09TEF7TR - STMicroelectronics - 3D model - Other - WLCSP36
click to zoom

STM32WB09TEF7TR Details

  • Manufacturer Part Number:

    STM32WB09TEF7TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

STM32WB09TEF7TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32WB09TEF7TR is -40°C to 85°C.
  • The clock settings for the STM32WB09TEF7TR can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics or by using the STM32CubeWB software development kit (SDK).
  • The maximum current consumption of the STM32WB09TEF7TR depends on the operating mode and frequency. According to the datasheet, the maximum current consumption is around 38mA in Run mode at 32MHz.
  • Secure boot on the STM32WB09TEF7TR can be implemented using the STM32CubeWB SDK and the STM32WB secure boot library. The library provides a set of APIs to generate and verify the secure boot signature.
  • The maximum data transfer rate for the BLE interface on the STM32WB09TEF7TR is 2Mbps.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32WB09TEF7TR Overview

Use the download button to access the STM32WB09TEF7TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
