STM8AF6226TASSSY - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 8-Kbyte Flash memory, data EEPROM, 10-bit ADC, timers, LIN, SPI, I²C, 3 to 5.5 V

Download STM8AF6226TASSSY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

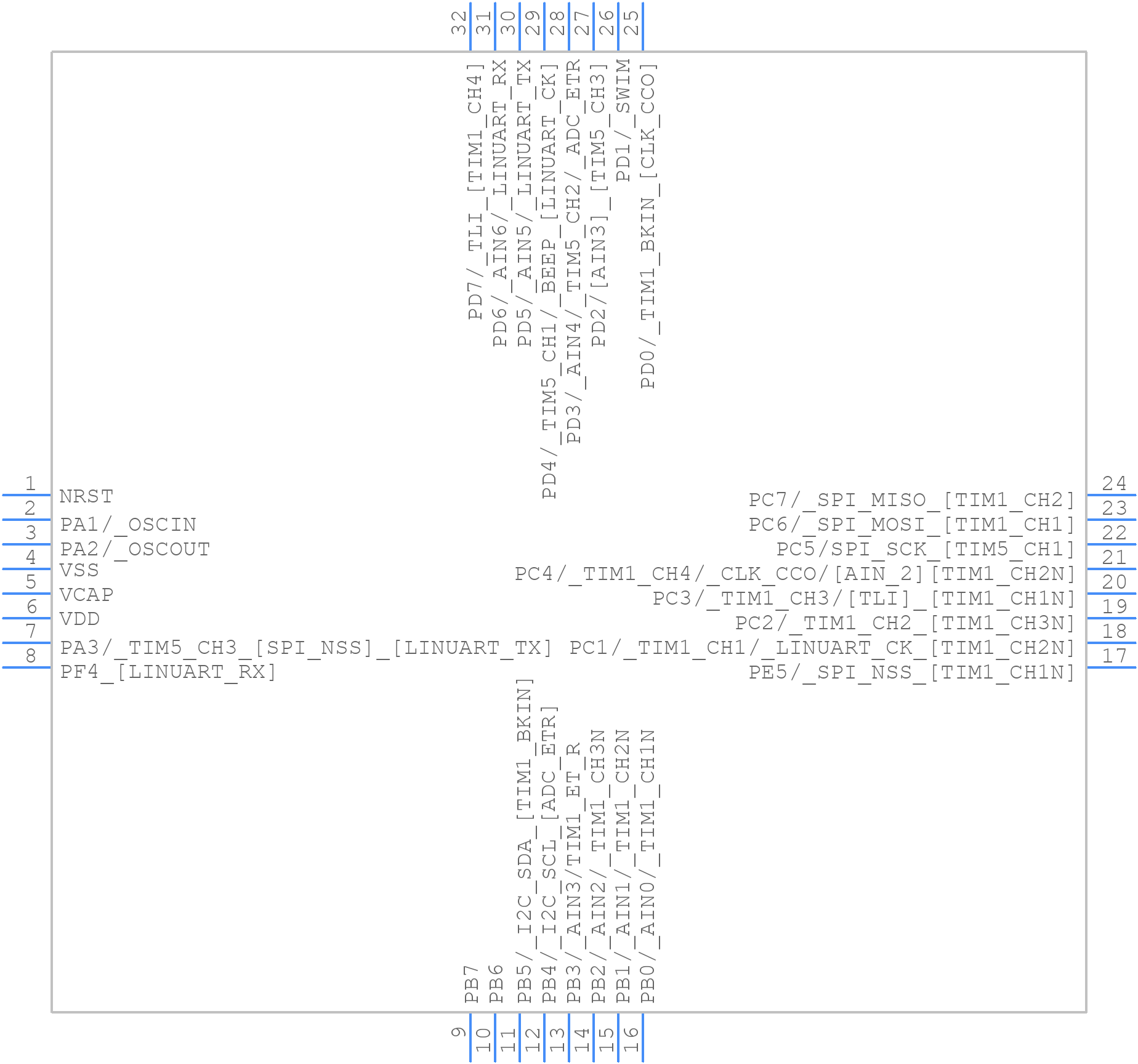

STM8AF6226TASSSY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6226TASSSY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - ST LQFP32
click to zoom
3D Models
STM8AF6226TASSSY - STMicroelectronics - 3D model - Quad Flat Packages - ST LQFP32
click to zoom

STM8AF6226TASSSY Details

  • Manufacturer Part Number:

    STM8AF6226TASSSY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Clock Frequency-Max:

    16 MHz

  • DMA Channels:

    NO

  • Length:

    7 mm

  • Number of I/O Lines:

    28

  • Number of Terminals:

    32

  • PWM Channels:

    YES

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6226TASSSY Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STM8AF6226TASSSY is 24 MHz.
  • The clock system of the STM8AF6226TASSSY can be configured using the Clock Security System (CSS) and the Clock Control Register (CKR). Refer to the STM8AF62xx datasheet and the STM8S series programming manual for more information.
  • The Bootloader in the STM8AF6226TASSSY allows for in-system programming (ISP) and in-application programming (IAP) of the device. It enables the device to be programmed or updated without the need for an external programmer.
  • The UART interface of the STM8AF6226TASSSY can be used for serial communication. The UART is configured using the UART registers (USART_SR, USART_DR, USART_BRR, etc.). Refer to the STM8AF62xx datasheet and the STM8S series programming manual for more information.
  • The power consumption of the STM8AF6226TASSSY depends on the operating frequency, voltage, and mode of operation. Refer to the STM8AF62xx datasheet for the typical power consumption values in different operating modes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM8AF6226TASSSY Overview

Use the download button to access the STM8AF6226TASSSY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM8A, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
