STM8AF6246ITCX - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 32 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Download STM8AF6246ITCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

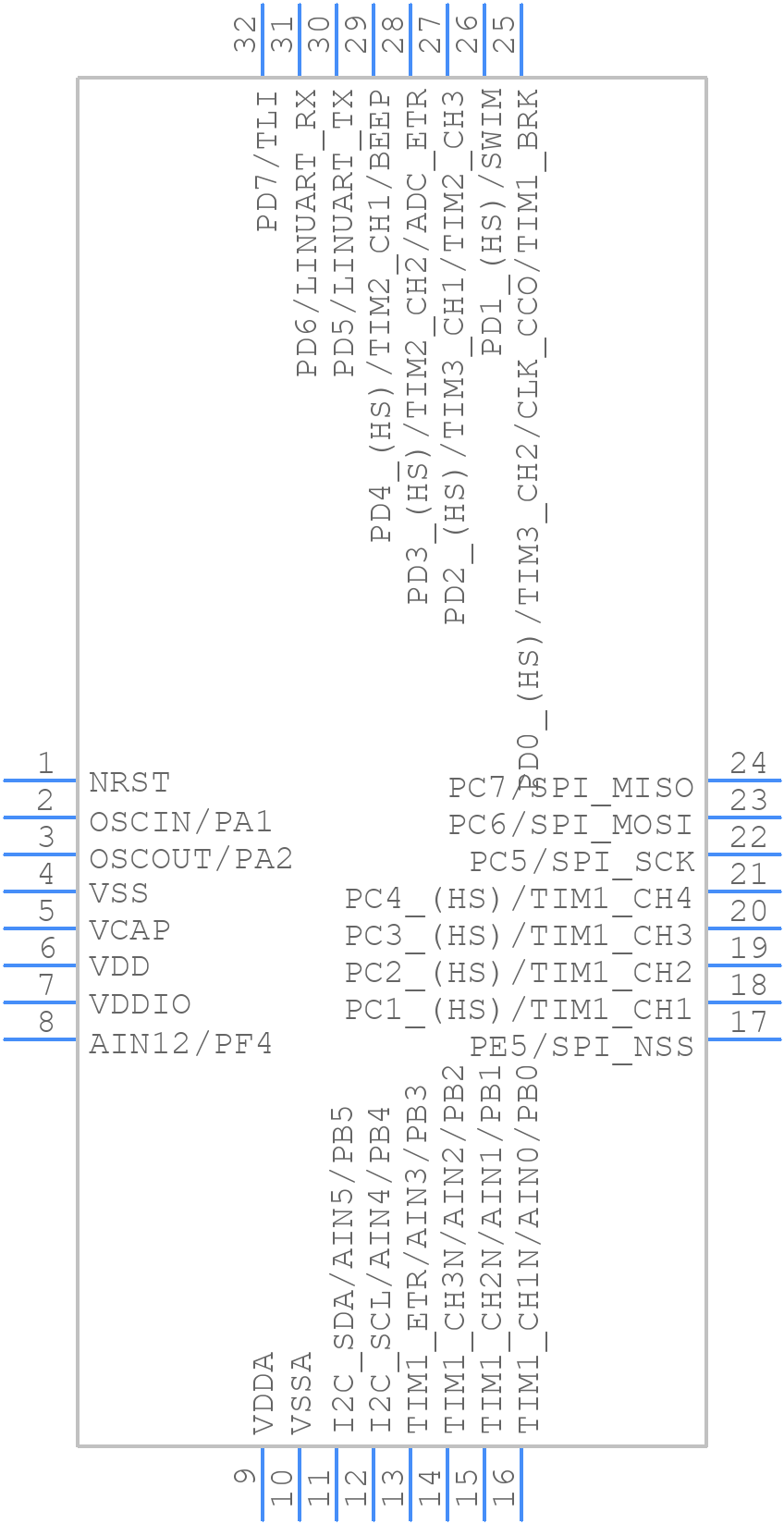

STM8AF6246ITCX - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6246ITCX - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom
3D Models
STM8AF6246ITCX - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom

STM8AF6246ITCX Details

  • Manufacturer Part Number:

    STM8AF6246ITCX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Number of I/O Lines:

    24

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6246ITCX Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STM8AF6246ITCX is 24 MHz, but it can be overclocked up to 32 MHz with a reduced voltage range.
  • The clock source for the STM8AF6246ITCX can be configured using the Clock Security System (CSS) and the Clock Controller (CLK) registers. The device can use an internal RC oscillator, an external crystal oscillator, or an external clock source.
  • The maximum amount of current that the STM8AF6246ITCX can source or sink on its I/O pins is 20 mA, but this value can be limited by the total current consumption of the device.
  • A bootloader on the STM8AF6246ITCX can be implemented using the IAP (In-Application Programming) protocol, which allows the device to reprogram its own flash memory. The bootloader can be written in C or assembly language using the STM8S-FLASH programming interface.
