STM8AF6246ITCY - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 32 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Download STM8AF6246ITCY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

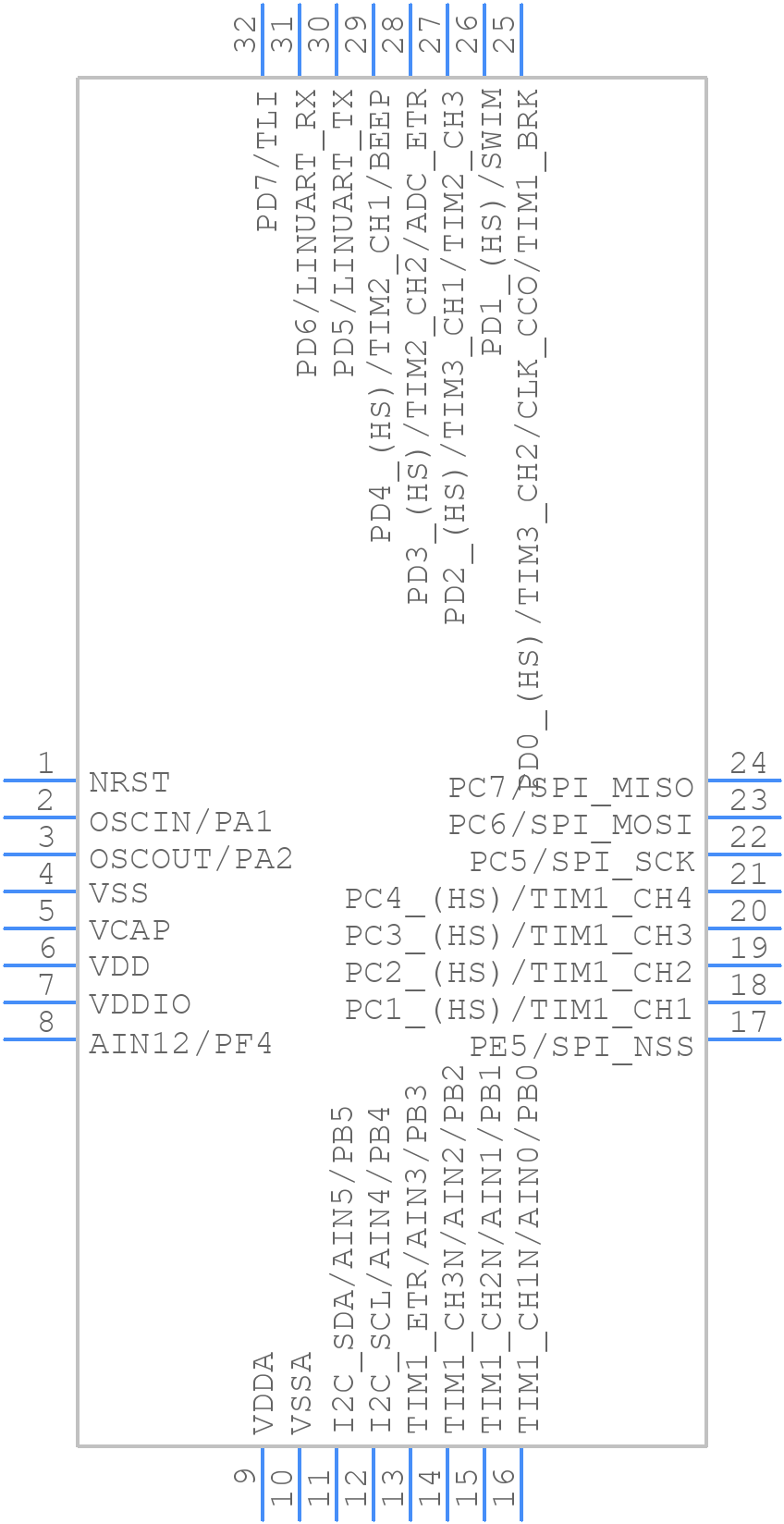

Symbol
STM8AF6246ITCY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6246ITCY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom
3D Models
STM8AF6246ITCY - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom

STM8AF6246ITCY Details

  • Manufacturer Part Number:

    STM8AF6246ITCY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Number of I/O Lines:

    24

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6246ITCY Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz, but it's recommended to use a maximum of 14 MHz to ensure stability and accuracy.
  • To configure the watchdog timer, you need to set the WDP bits in the WAFR register to select the timeout period, and then enable the watchdog timer by setting the WDGA bit in the WAFR register. You can also use the IWDG (Independent Watchdog) to reset the MCU in case of a fault.
  • The maximum current that can be sourced or sunk by the GPIO pins is 20 mA, but it's recommended to limit the current to 10 mA to ensure reliable operation and prevent overheating.
  • To use the UART in asynchronous mode, you need to configure the UART clock, set the baud rate, and enable the UART transmitter and receiver. You can use the USART_CR2 register to configure the UART mode, and the USART_BRR register to set the baud rate.
  • The BOR feature is used to reset the MCU when the supply voltage falls below a certain threshold (typically 1.9 V). This helps to prevent the MCU from operating erratically or unpredictably during power-on or power-down sequences.
