STM8AF6246TASSSY - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 32 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Download STM8AF6246TASSSY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

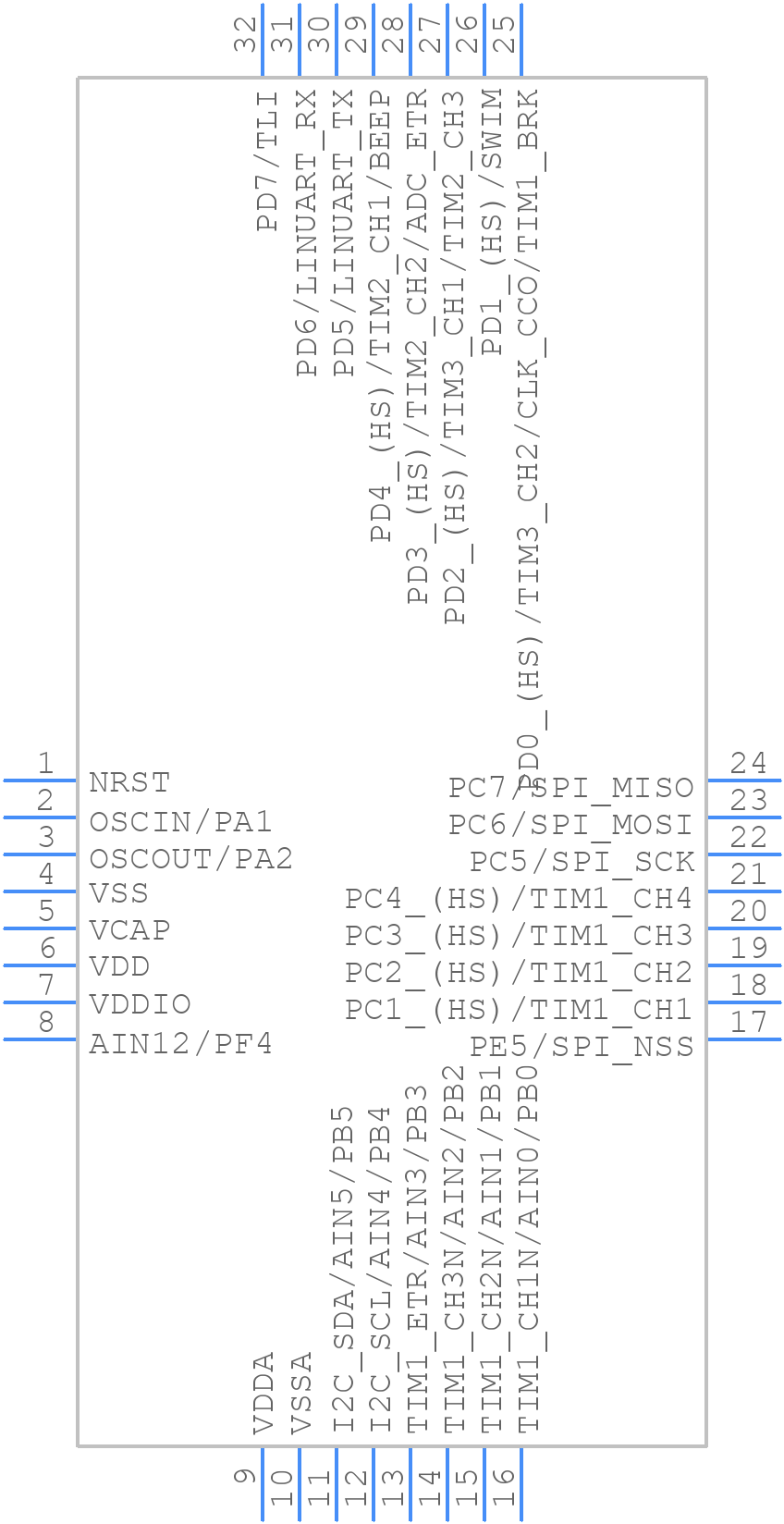

Symbol
STM8AF6246TASSSY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6246TASSSY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom
3D Models
STM8AF6246TASSSY - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom

STM8AF6246TASSSY Details

  • Manufacturer Part Number:

    STM8AF6246TASSSY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • CPU Family:

    STM8

  • Clock Frequency-Max:

    24 MHz

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Number of I/O Lines:

    32

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Speed:

    16 MHz

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6246TASSSY Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STM8AF6246TASSSY is 24 MHz, but it can be overclocked up to 32 MHz with some limitations.
  • The clock source can be configured using the Clock Security System (CSS) and the Clock Controller (CKC) registers. The STM8AF6246TASSSY can use an external clock source, an internal RC oscillator, or a crystal oscillator.
  • The maximum amount of current that the STM8AF6246TASSSY can source or sink on its I/O pins is 20 mA, but this value can be limited by the total current consumption of the device.
  • A bootloader can be implemented on the STM8AF6246TASSSY using the IAP (In-Application Programming) protocol, which allows the device to reprogram its own flash memory. STMicroelectronics provides a bootloader example code and a development tool called STM8 Flash loader demonstrator.
  • The minimum voltage required for the STM8AF6246TASSSY to operate is 2.95 V, but it is recommended to use a voltage regulator to ensure a stable voltage supply.
