STM8AF6286UDX - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 128 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, CAN, USART, SPI, I2C, 3 to 5.5 V

Download STM8AF6286UDX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

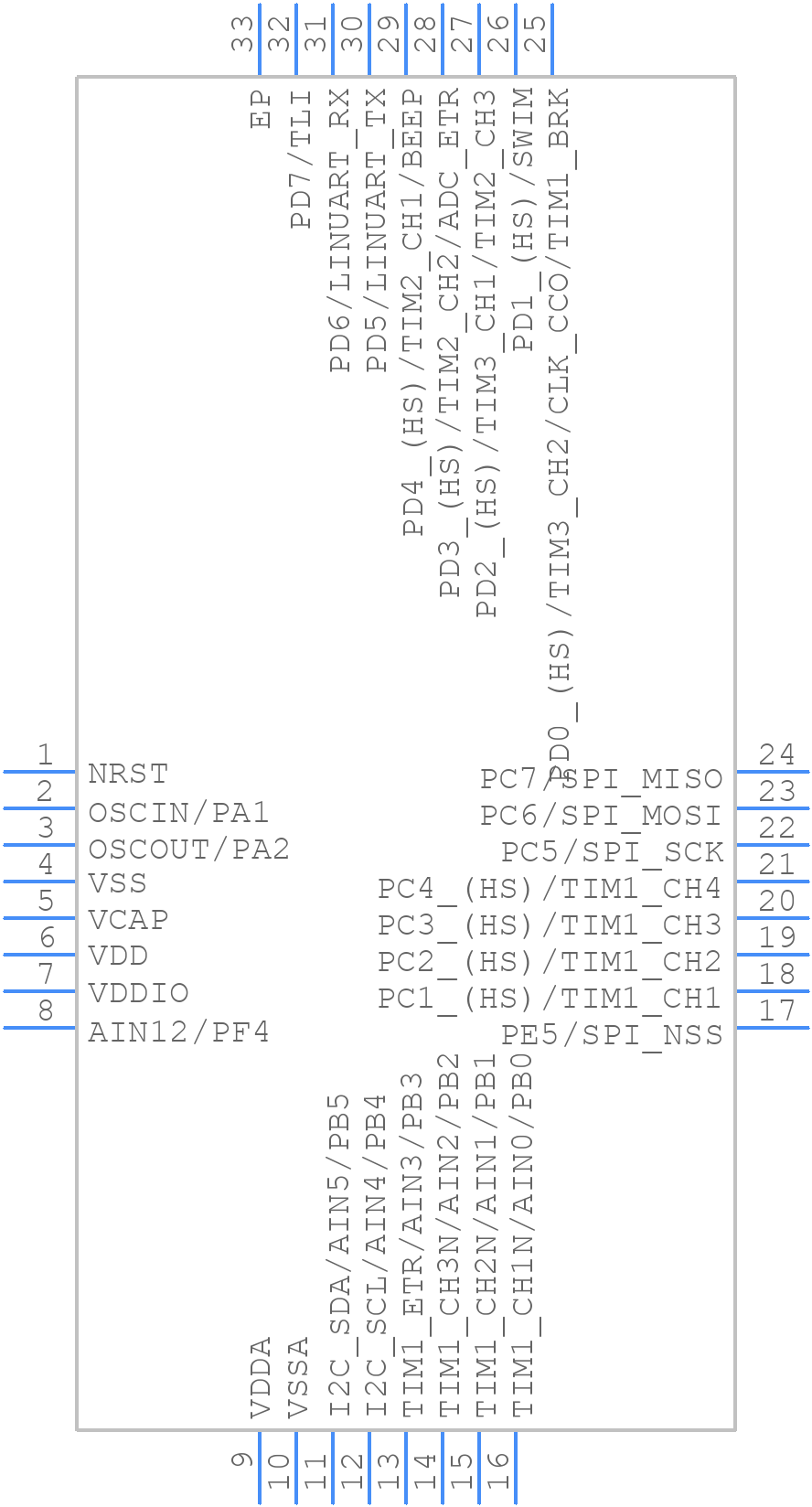

STM8AF6286UDX - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6286UDX - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 32 5mm x 5mm x 1mm
click to zoom
3D Models
STM8AF6286UDX - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 32 5mm x 5mm x 1mm
click to zoom

STM8AF6286UDX Details

  • Manufacturer Part Number:

    STM8AF6286UDX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    STM8

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    25

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    32

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    6144

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM8AF6286UDX Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the STM8AF6286UDX is 24 MHz, but it can be overclocked up to 32 MHz with some limitations. However, it's recommended to follow the clock frequency specified in the datasheet to ensure reliable operation.
  • The watchdog timer on the STM8AF6286UDX can be configured using the WWDG_CR register. You need to set the WWDG_CR[7:0] bits to select the watchdog timer prescaler and the WWDG_CR[15:8] bits to set the watchdog timer window. Refer to the STM8AF62xx datasheet for more information.
  • Yes, the STM8AF6286UDX can operate with a 3.3V power supply. The device is specified to operate from 2.95V to 3.63V, making it suitable for 3.3V systems. However, ensure that the voltage regulator and power supply can provide a stable 3.3V output.
  • Implementing a bootloader on the STM8AF6286UDX requires writing a custom firmware that can update the device's flash memory. You can use the STM8 bootloader development kit and the STM8CubeMX tool to create a custom bootloader. Refer to the STM8 bootloader application note for more information.
  • The maximum amount of current that can be sourced or sunk by the GPIO pins on the STM8AF6286UDX is 20mA per pin. However, the total current sourced or sunk by all GPIO pins should not exceed 100mA to prevent overheating and ensure reliable operation.
