STMLS05ACQTR - STMicroelectronics

Description: Array of 5 switches, Low Ron, Ultra low leakage current

Download STMLS05ACQTR Model

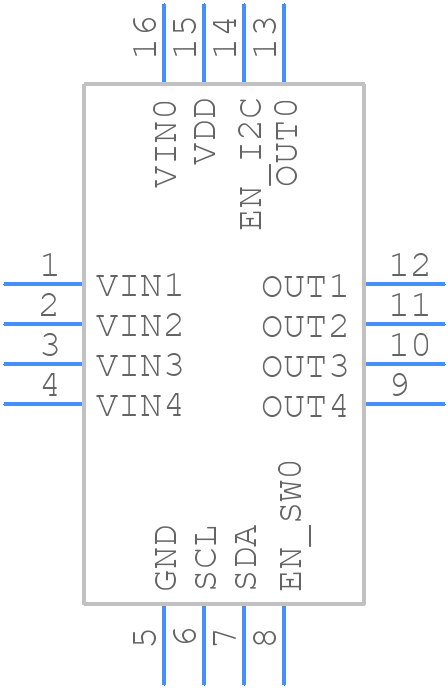

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STMLS05ACQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 (3x3x0.55)---0
click to zoom
3D Models
STMLS05ACQTR - STMicroelectronics  - 3D model - Quad Flat No-Lead - QFN16 (3x3x0.55)---0
click to zoom

STMLS05ACQTR Details

  • Manufacturer Part Number:

    STMLS05ACQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

STMLS05ACQTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal via array with a minimum of 10 vias under the package to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power consumption according to the temperature rating.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V for reliable operation.
  • STMicroelectronics recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input lines to protect the device from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal voltage regulators and bias circuits are properly initialized before the device starts operating.
