STMPE1601TBR - STMicroelectronics

Description: 16-bit enhanced port expander with keypad and PWM controller Xpander Logic™

Download STMPE1601TBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

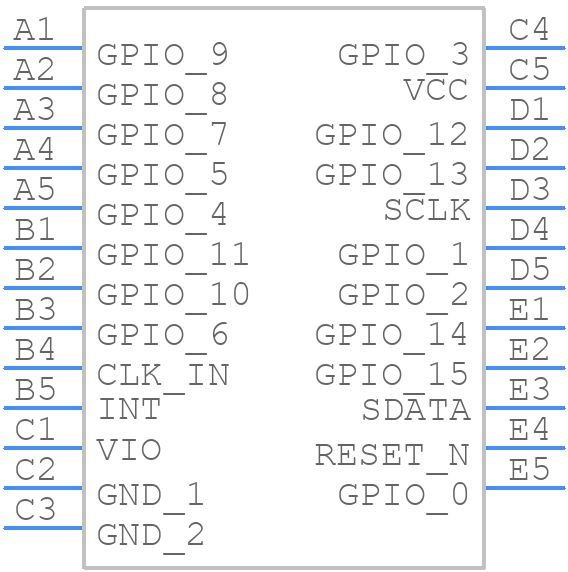

STMPE1601TBR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STMPE1601TBR - STMicroelectronics PCB footprint - BGA - BGA - TFBGA25 _2026-1.1
click to zoom
3D Models
STMPE1601TBR - STMicroelectronics - 3D model - BGA - TFBGA25 _2026-1.1
click to zoom

STMPE1601TBR Details

  • Manufacturer Part Number:

    STMPE1601TBR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MICRO TFBGA-25

  • Pin Count:

    25

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.032 MHz

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA25,5X5,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.16 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

STMPE1601TBR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended layout and routing guide in their application note AN4315, which includes guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • The STMPE1601TBR generates interrupts on touch events, and the interrupt handling mechanism depends on the microcontroller or processor used in the system. Engineers should refer to the microcontroller's datasheet and the STMPE1601TBR's datasheet to understand how to handle interrupts, clear flags, and prioritize interrupt sources.
  • The STMPE1601TBR supports touch frequencies up to 200 Hz, which is sufficient for most touch-based applications. However, the actual touch frequency may vary depending on the system's noise environment, sensor design, and firmware implementation.
  • Yes, the STMPE1601TBR is a standard I2C-based touch controller and can be used with any microcontroller that supports I2C communication. However, engineers may need to develop custom firmware or modify existing libraries to interface with the STMPE1601TBR.
  • Calibration of the STMPE1601TBR involves adjusting the sensor's sensitivity, noise threshold, and other parameters to optimize its performance. STMicroelectronics provides a calibration guide in their application note AN4315, which includes step-by-step procedures for calibration and tuning.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STMPE1601TBR Overview

Use the download button to access the STMPE1601TBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STMPE, or try a keyword search, such as Parallel IO Ports
