STNRG012TR - STMicroelectronics

Description: Digital combo multi-mode PFC and time-shift LLC resonant controller for AC and DC input line

Download STNRG012TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

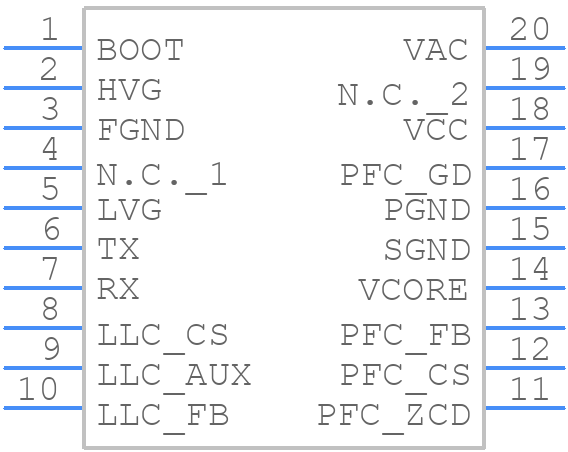

STNRG012TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STNRG012TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - . SO20 package mechanical data
click to zoom
3D Models
STNRG012TR - STMicroelectronics - 3D model - Small Outline Packages - . SO20 package mechanical data
click to zoom

STNRG012TR Details

  • Manufacturer Part Number:

    STNRG012TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

STNRG012TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 10uF to 22uF. Refer to the application note AN4979 for more detailed guidance.
  • The STNRG012TR is rated for operation up to 105°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation. Consult the datasheet and application note AN4979 for thermal derating guidelines.
  • The STNRG012TR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The application note AN4979 provides a detailed example of how to implement OVP using a voltage divider and a Zener diode.
  • The output capacitor value and type depend on the output voltage and current. A general guideline is to use a low-ESR capacitor with a value between 10uF to 47uF. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STNRG012TR Overview

Use the download button to access the STNRG012TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STNRG, or try a keyword search, such as Other Signal Circuits
