STO60N030M9 - STMicroelectronics

Description: N-channel 600 V, 23 mOhm typ., 79 A MDmesh M9 Power MOSFET in a TO-LL package

Download STO60N030M9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

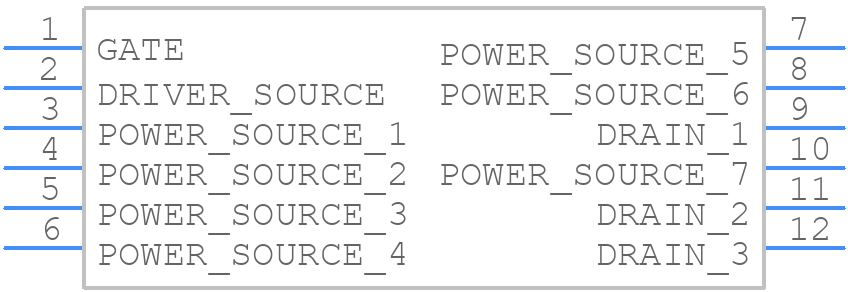

Symbol
STO60N030M9 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STO60N030M9 - STMicroelectronics PCB footprint - Other - Other - TO-LL type A2_2023
click to zoom
3D Models
STO60N030M9 - STMicroelectronics - 3D model - Other - TO-LL type A2_2023
click to zoom

STO60N030M9 Details

  • Manufacturer Part Number:

    STO60N030M9

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

STO60N030M9 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STO60N030M9 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within the -40°C to 125°C range for optimal performance and reliability.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a suitable gate driver and ensure the gate-source voltage (Vgs) is within the recommended range of 10-15V for optimal switching performance.
  • For optimal thermal management, use a PCB with a thermal pad and ensure good thermal conductivity. Keep the component away from heat sources and use a heat sink if necessary. Follow the recommended PCB layout guidelines in the datasheet and application notes to minimize parasitic inductance and ensure reliable operation.
  • Use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism to prevent damage from voltage and current surges. Implement a gate-source voltage clamp to prevent excessive Vgs voltage. Additionally, use a fuse or current limiter to prevent overcurrent conditions.
  • The recommended gate resistance for the STO60N030M9 is typically in the range of 10-20 ohms. This helps to reduce ringing and oscillations, ensuring reliable switching performance. However, the optimal gate resistance may vary depending on the specific application and circuit design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STO60N030M9 Overview

Use the download button to access the STO60N030M9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STO60, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
