STOD03ASTPUR - STMicroelectronics

Description: Dual DC-DC converter for powering AMOLED displays

Download STOD03ASTPUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

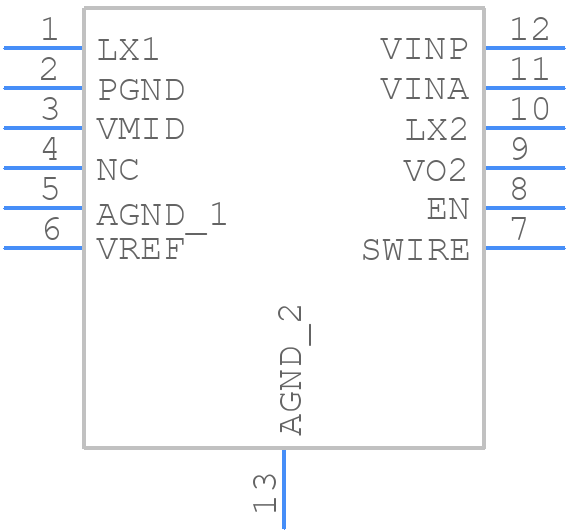

Symbol
STOD03ASTPUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STOD03ASTPUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN12L (3x3x0.75 mm).
click to zoom
3D Models
STOD03ASTPUR - STMicroelectronics - 3D model - Small Outline No-lead - DFN12L (3x3x0.75 mm).
click to zoom

STOD03ASTPUR Details

  • Manufacturer Part Number:

    STOD03ASTPUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, DFN-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE RANGE FROM -5.4 VOLT TO -2.4 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.7 V

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Nom:

    4.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1700 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

STOD03ASTPUR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable thermal interface material, and implement adequate heat sinking and cooling mechanisms.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range.
  • Yes, the STOD03ASTPUR is suitable for high-reliability and automotive applications, as it meets the required standards for quality and reliability. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with specific industry requirements.
  • To troubleshoot issues related to overvoltage or undervoltage conditions, check the input voltage levels, ensure proper voltage regulation, and verify that the device is operating within the recommended voltage range. Also, review the device's protection features, such as overvoltage protection (OVP) and undervoltage lockout (UVLO).
