STOD03BTPUR - STMicroelectronics

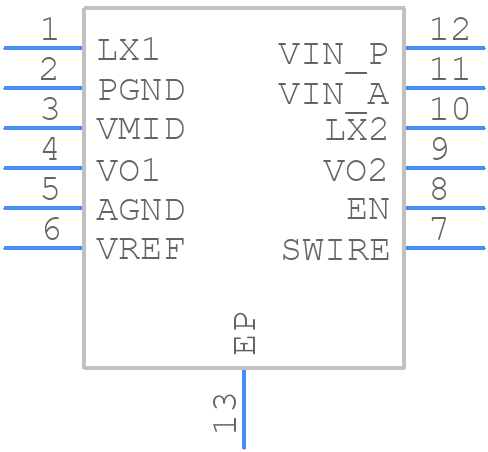

STOD03BTPUR Details

• Manufacturer Part Number:

  STOD03BTPUR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  3 X 3 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, DFN-12

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  ADJUSTABLE OUTPUT VOLTAGE RANGE FROM -5.4 VOLT TO -2.4 VOLT

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  4.8 V

• Input Voltage-Min:

  2.3 V

• Input Voltage-Nom:

  3.7 V

• JESD-30 Code:

  S-PDSO-N12

• Length:

  3 mm

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.15 A

• Output Voltage-Max:

  4.646 V

• Output Voltage-Min:

  4.554 V

• Output Voltage-Nom:

  4.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC12,.12,18

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  0.6 mm

• Supply Current-Max (Isup):

  1.7 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  1650 kHz

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.45 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  3 mm
