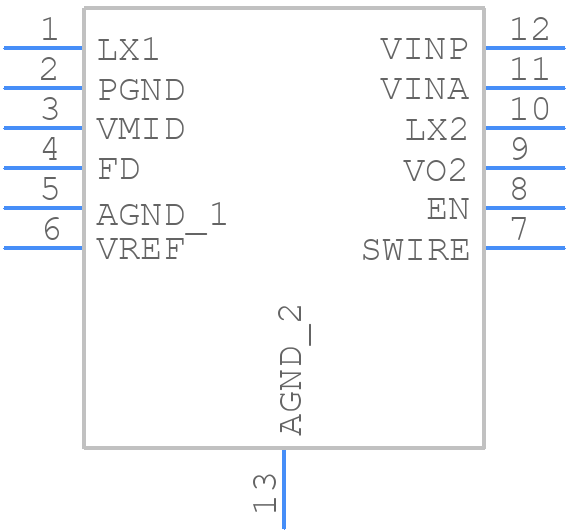

STOD13ATPUR - STMicroelectronics

STOD13ATPUR Details

• Manufacturer Part Number:

  STOD13ATPUR

• Brand Name:

  STMicroelectronics

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DFN-12

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  4.5 V

• Input Voltage-Min:

  2.5 V

• Input Voltage-Nom:

  3.7 V

• JESD-30 Code:

  S-PDSO-N12

• Length:

  3 mm

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.25 A

• Output Voltage-Max:

  -6.4 V

• Output Voltage-Min:

  -2.4 V

• Output Voltage-Nom:

  4.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HUSON

• Package Equivalence Code:

  SOLCC12,.12,18

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, ULTRA THIN PROFILE

• Seated Height-Max:

  0.6 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  1650 kHz

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.45 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
