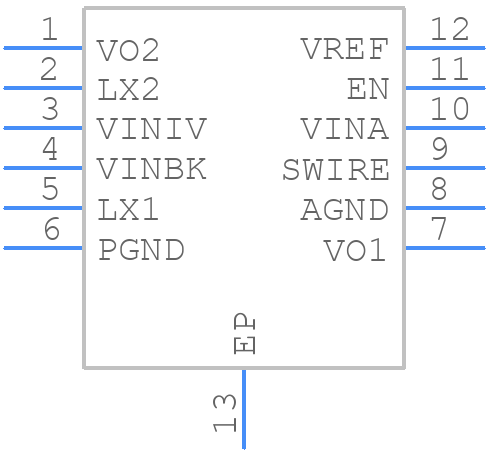

STOD14PUR - STMicroelectronics

STOD14PUR Details

• Manufacturer Part Number:

  STOD14PUR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  4 X 4 MM, 0.75 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, DFN-12

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  3

• Additional Feature:

  ADJUSTABLE VOLTAGE RANGE FROM -6 VOLT TO -2.4 VOLT

• Analog IC - Other Type:

  DUAL SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  13 V

• Input Voltage-Min:

  6 V

• Input Voltage-Nom:

  9 V

• JESD-30 Code:

  S-PDSO-N12

• Length:

  4 mm

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.7 A

• Output Voltage-Nom:

  4.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC12,.16,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1760 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  4 mm
