STMicroelectronics provides a recommended PCB layout for the STP1612PW05MTR in the application note AN2349, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
While the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowable voltage on the input pins is 6V, exceeding which can cause permanent damage to the device.
To prevent electrostatic discharge (ESD) damage, follow proper ESD handling and assembly procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, consider implementing ESD protection devices, such as TVS diodes, in the circuit design.
The STP1612PW05MTR is not hermetically sealed, so it's essential to consider the implications of using the device in a high-humidity environment. Moisture can cause corrosion, electrical leakage, or other reliability issues. Consider using conformal coatings, potting, or other environmental protection methods to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STP1612PW05MTR Overview

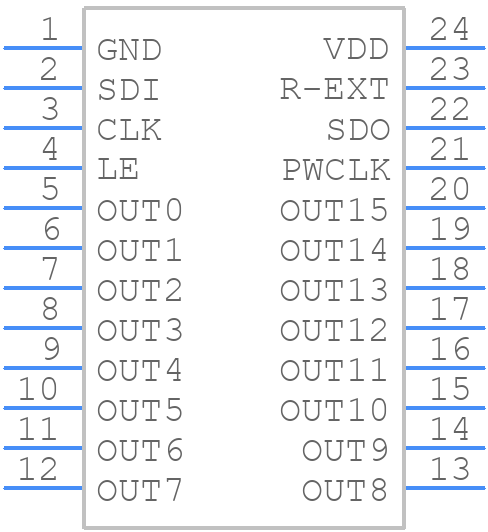

Use the download button to access the STP1612PW05MTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STP16,
or try a keyword search, such as Display Drivers
