STP16CPC05PTR - STMicroelectronics

Description: Low voltage 16-bit constant current LED sink driver with balanced output rise/fall time

Download STP16CPC05PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

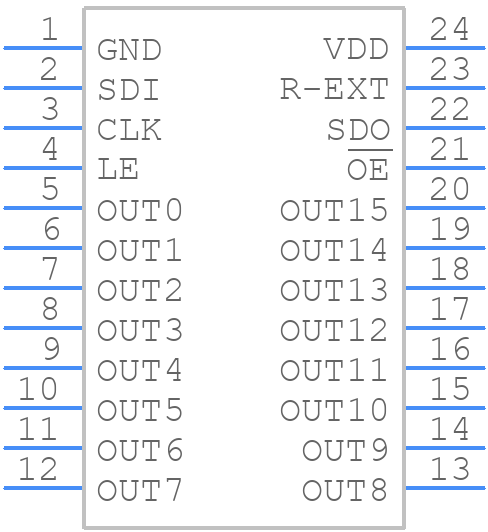

Symbol
