Part Image

STP16CPC26MTR - STMicroelectronics

Description: LED Display Drivers LV 16-bit LED Driver 5mA to 90mA 30MHz

Download STP16CPC26MTR Model

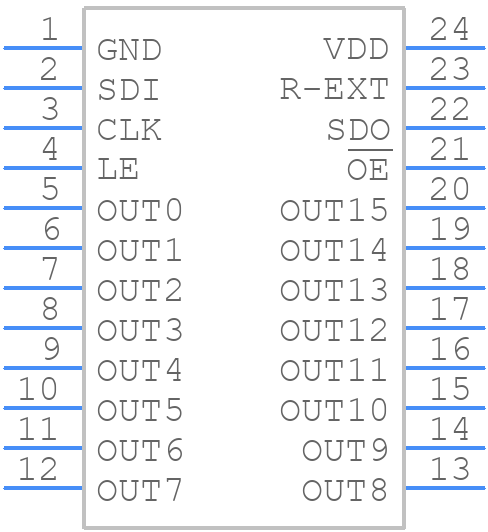

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STP16CPC26MTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-24_1
click to zoom
3D Models
STP16CPC26MTR - STMicroelectronics  - 3D model - Small Outline Packages - SO-24_1
click to zoom

STP16CPC26MTR Details

  • Manufacturer Part Number:

    STP16CPC26MTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-24

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    32 Weeks, 4 Days

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.92

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

  • fmax-Min:

    30 MHz

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STP16CPC26MTR Overview

Use the download button to access the STP16CPC26MTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STP16, or try a keyword search, such as Display Drivers
