STP16CPS05B1R - STMicroelectronics

STP16CPS05B1R Details

• Manufacturer Part Number:

  STP16CPS05B1R

• Brand Name:

  STMicroelectronics

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

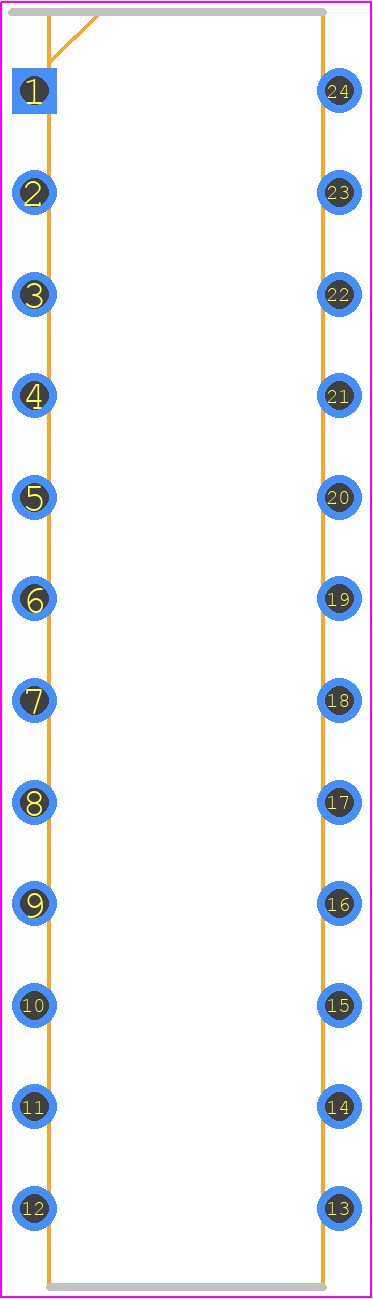

  PLASTIC, DIP-24

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Data Input Mode:

  SERIAL

• Display Mode:

  SEGMENT

• Input Characteristics:

  STANDARD

• Interface IC Type:

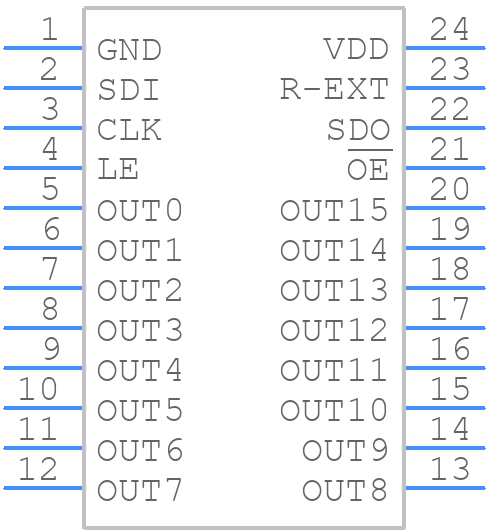

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDIP-T24

• Length:

  31.75 mm

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  16

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.32 mm

• Supply Current-Max:

  11.7 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm

• fmax-Min:

  30 MHz
