STP16CPS05PTR - STMicroelectronics

Description: Low voltage 16-bit constant current LED sink driver with auto power saving

Download STP16CPS05PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

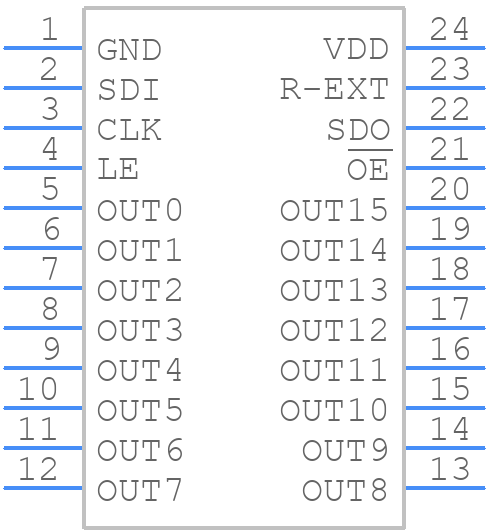

Symbol
STP16CPS05PTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STP16CPS05PTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-24
click to zoom
3D Models
STP16CPS05PTR - STMicroelectronics - 3D model - Small Outline Packages - QSOP-24
click to zoom

STP16CPS05PTR Details

  • Manufacturer Part Number:

    STP16CPS05PTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.66 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    30 MHz

STP16CPS05PTR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for STP16CPS05PTR is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance may degrade at extreme temperatures, and it's crucial to consider thermal management in the system design.
  • To ensure the reliability of STP16CPS05PTR in high-humidity environments, it's recommended to follow proper handling and storage procedures, such as storing the devices in a dry, clean environment, and using moisture-barrier bags or desiccants to control humidity. Additionally, consider applying a conformal coating to the PCB to protect against moisture ingress.
  • The maximum current rating for each segment of the STP16CPS05PTR is 30mA, as specified in the datasheet. However, it's essential to consider the total current consumption of the device and ensure that it does not exceed the maximum rating to prevent overheating and damage.
  • To troubleshoot issues with the STP16CPS05PTR, start by verifying the device's power supply and clock signals. Check for proper voltage levels, clock frequency, and signal integrity. Use a logic analyzer or oscilloscope to debug the device's communication protocol and identify any errors. Also, review the device's datasheet and application notes for guidance on troubleshooting common issues.
  • While the STP16CPS05PTR is specified for a maximum refresh rate of 100Hz, it's possible to use it in designs that require higher refresh rates. However, this may require additional external circuitry to boost the clock frequency and ensure proper device operation. Consult with STMicroelectronics' technical support or a qualified engineer to determine the feasibility of using the device in such an application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STP16CPS05PTR Overview

Use the download button to access the STP16CPS05PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STP16, or try a keyword search, such as Display Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
