STPM33TR - STMicroelectronics

Description: ASSP for metering applications with up to four independent 24-bit 2nd order sigma-delta ADCs, 4 MHz OSF and 2 embedded PGLNA

Download STPM33TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

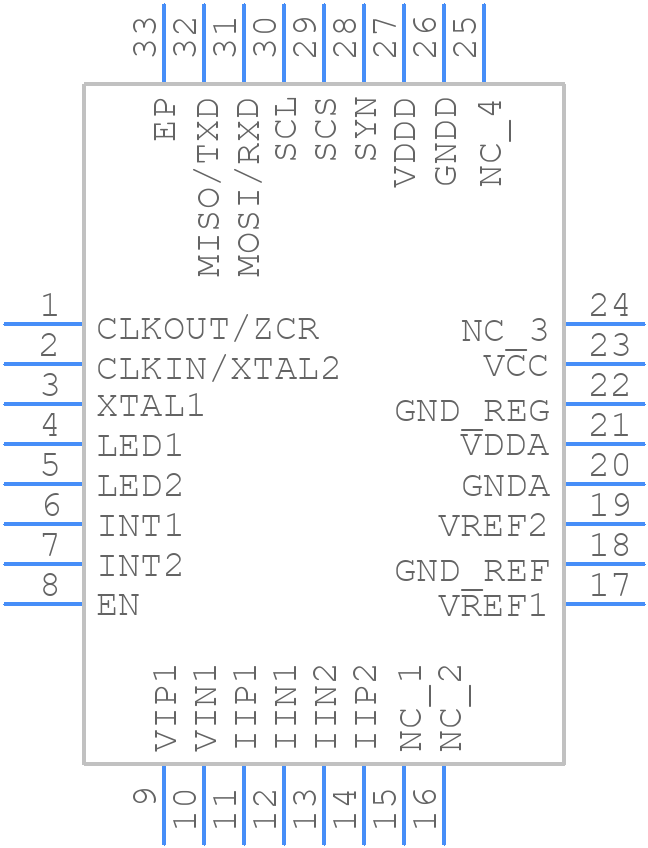

STPM33TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STPM33TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32L 5x5x1mm 0.5pitch
click to zoom
3D Models
STPM33TR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN32L 5x5x1mm 0.5pitch
click to zoom

STPM33TR Details

  • Manufacturer Part Number:

    STPM33TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.65 V

  • Supply Voltage-Min (Vsup):

    2.95 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

STPM33TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the STPM33TR near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, it's essential to minimize the thermal resistance between the device and the ambient air.
  • To ensure accurate current sensing with the STPM33TR, it's crucial to follow proper layout and routing guidelines. This includes keeping the current sense traces short and wide, using a dedicated ground plane, and minimizing noise coupling. Additionally, calibrate the current sense circuitry according to the application requirements and consider using a low-temperature coefficient resistor for the sense resistor.
  • When using the STPM33TR, key considerations for EMI filtering include using a common-mode choke or a ferrite bead to filter out high-frequency noise, placing the filter components close to the device, and ensuring a good ground plane to reduce radiation. Additionally, consider using a shielded cable or a twisted pair for the current sense lines to minimize electromagnetic interference.
  • To handle overcurrent protection with the STPM33TR, implement a current limiting circuit that triggers when the current exceeds a predetermined threshold. This can be achieved using a dedicated overcurrent protection IC or by using the STPM33TR's built-in overcurrent detection feature. Ensure that the protection circuitry is designed to respond quickly to overcurrent events and that the system can safely handle the resulting shutdown or reset.
  • Thermal management considerations for the STPM33TR include ensuring good airflow around the device, using a heat sink or thermal pad, and minimizing the thermal resistance between the device and the ambient air. Additionally, consider using a thermal interface material to improve heat transfer and ensure that the system can operate within the device's specified temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STPM33TR Overview

Use the download button to access the STPM33TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STPM3, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
