STPMC1BTR - STMicroelectronics

Description: Programmable poly-phase energy calculator IC

Download STPMC1BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

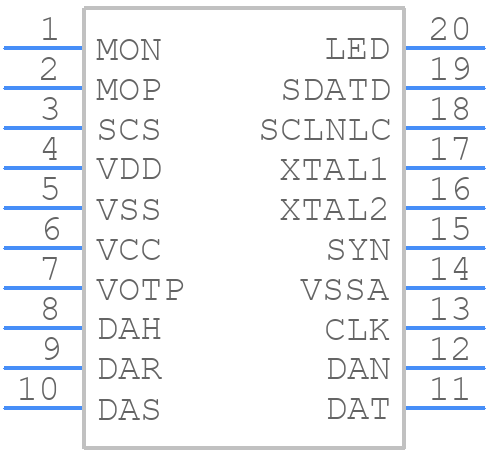

STPMC1BTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STPMC1BTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
STPMC1BTR - STMicroelectronics - 3D model - Small Outline Packages - TSSOP
click to zoom

STPMC1BTR Details

  • Manufacturer Part Number:

    STPMC1BTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, TSSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.17 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

STPMC1BTR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for STPMC1BTR is -40°C to 125°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, reducing the power consumption and using a thermal interface material can help to reduce the junction temperature.
  • The maximum allowed voltage on the VCC pin of STPMC1BTR is 5.5V. Exceeding this voltage may cause permanent damage to the device.
  • To handle ESD protection for STPMC1BTR, it is recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input/output pins. Additionally, following proper handling and storage procedures can help to prevent ESD damage.
  • To minimize noise and EMI, it is recommended to use a multi-layer PCB with a solid ground plane, keep the signal traces short and away from the power traces, and use decoupling capacitors to filter the power supply. Additionally, using a shielded enclosure and following good PCB design practices can help to reduce EMI.
