STPMS1BPQR - STMicroelectronics

Description: Current & Power Monitors & Regulators Smart Sensor Dual-Ch PGA Mod 3.2V - 5.5V

Download STPMS1BPQR Model

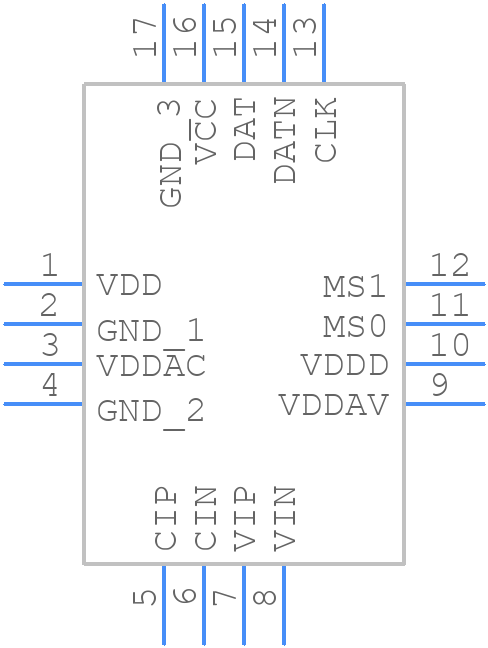

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STPMS1BPQR - STMicroelectronics PCB footprint - Other - Other - QFN16 (3 x 3 mm.)
click to zoom
3D Models
STPMS1BPQR - STMicroelectronics  - 3D model - Other - QFN16 (3 x 3 mm.)
click to zoom

STPMS1BPQR Details

  • Manufacturer Part Number:

    STPMS1BPQR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, QFN-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.165 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

STPMS1BPQR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a thermal management system, such as a heat sink or fan, to keep the junction temperature below 150°C. Also, ensure proper PCB design and component selection to minimize thermal resistance.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. For input capacitors, use 10uF to 22uF, and for output capacitors, use 4.7uF to 10uF.
  • Connect a 10kΩ to 100kΩ pull-up resistor to the POR pin and a 10nF to 100nF capacitor to the BOR pin. Ensure the POR pin is tied to a stable voltage source, and the BOR pin is connected to a voltage source with a minimum of 1.8V.
  • Use a star-configuration for the power and ground pins, with separate traces for each pin. Ensure the power and ground pins are connected to a solid ground plane and a low-impedance power plane.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STPMS1BPQR Overview

Use the download button to access the STPMS1BPQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STPMS, or try a keyword search, such as Other Signal Circuits
