STPS1545G-TR - STMicroelectronics

Description: Schottky Diodes & Rectifiers 15 Amp 45 Volt

Download STPS1545G-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STPS1545G-TR - STMicroelectronics - PCB symbol
click to zoom

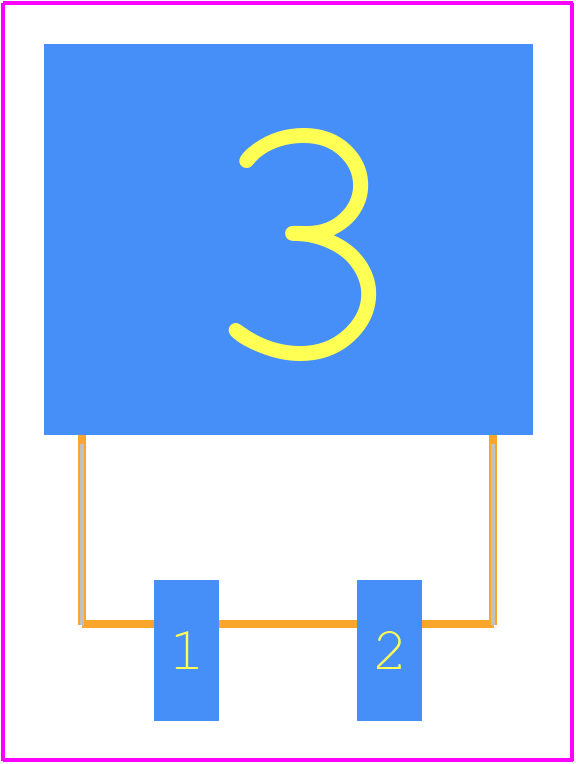

PCB Footprints
STPS1545G-TR - STMicroelectronics PCB footprint - Other - Other - STPS10150CG-TR-2
click to zoom
3D Models
STPS1545G-TR - STMicroelectronics - 3D model - Other - STPS10150CG-TR-2
click to zoom

STPS1545G-TR Details

  • Manufacturer Part Number:

    STPS1545G-TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-263

  • Package Description:

    D2PAK-3/2

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    FREE WHEELING DIODE

  • Application:

    FAST RECOVERY POWER

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.57 V

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    220 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    45 V

  • Reverse Current-Max:

    200 µA

  • Reverse Test Voltage:

    45 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

STPS1545G-TR Frequently Asked Questions (FAQs)

  • A good thermal design should be used to ensure optimal heat dissipation. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB, and multiple vias should be used to connect the thermal pad to the copper area. The copper area should be as large as possible and connected to a heat sink or a metal plate.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator or a voltage reference should be used to provide a stable input voltage. The biasing circuit should be designed to provide a stable voltage and current to the device.
  • The device is sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Handling precautions should be taken, such as using an ESD wrist strap or mat, and ensuring that the device is stored in an anti-static bag or tube.
  • To troubleshoot issues with the device, check the input voltage and current, and ensure that the device is properly biased. Check for any signs of overheating, and verify that the device is properly soldered to the PCB. If the issue persists, consult the datasheet and application notes, or contact STMicroelectronics support for further assistance.
  • The STPS1545G-TR meets the quality and reliability standards of STMicroelectronics, including AEC-Q101 and ISO/TS 16949. The device is also compliant with RoHS and REACH regulations.
