STPS20200CG-TR - STMicroelectronics

STPS20200CG-TR Details

• Manufacturer Part Number:

  STPS20200CG-TR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

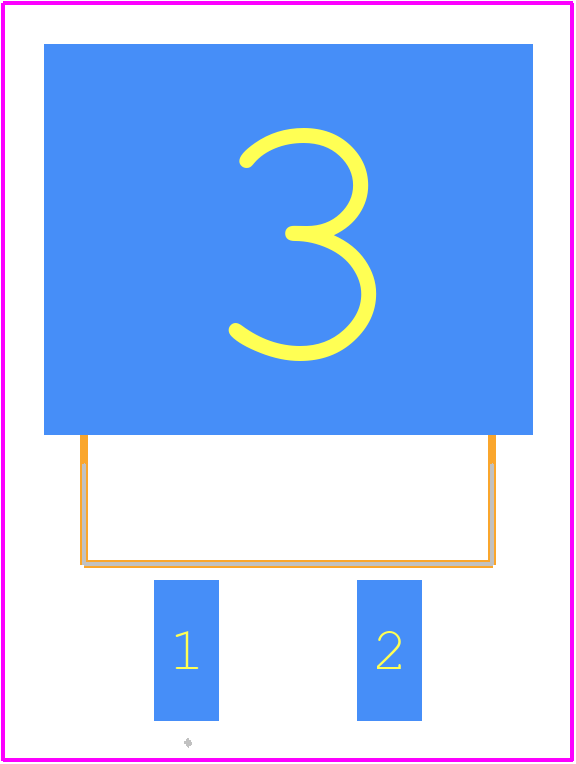

• Package Description:

  D2PAK-3/2

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Factory Lead Time:

  25 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  5.98

• Application:

  FAST RECOVERY POWER

• Case Connection:

  CATHODE

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.86 V

• JEDEC-95 Code:

  TO-263AB

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  180 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  20 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  245

• Rep Pk Reverse Voltage-Max:

  200 V

• Reverse Current-Max:

  15 µA

• Reverse Test Voltage:

  200 V

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30
