STPS2045CG-TR - STMicroelectronics

Description: Schottky Diodes & Rectifiers 2X10 Amp 45 Volt

Download STPS2045CG-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STPS2045CG-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

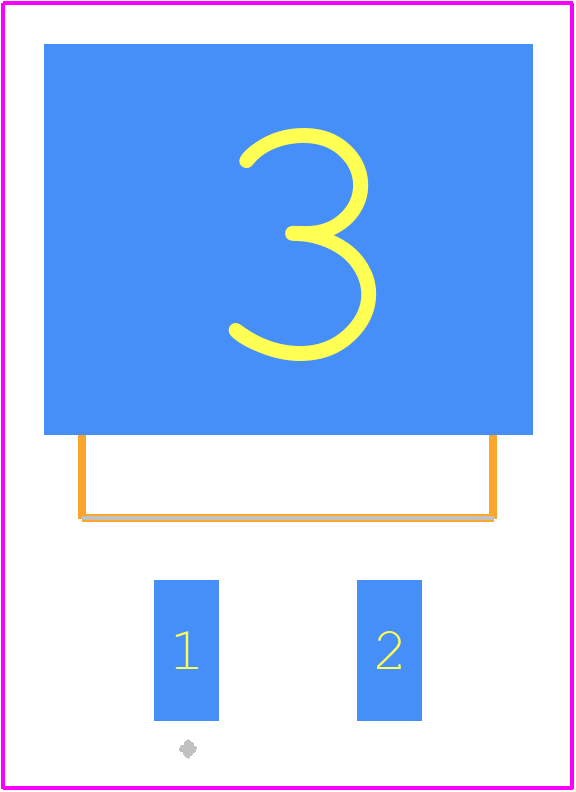

STPS2045CG-TR - STMicroelectronics PCB footprint - Other - Other - STPS2045CG-TR-1
click to zoom

STPS2045CG-TR Details

  • Manufacturer Part Number:

    STPS2045CG-TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-263

  • Package Description:

    D2PAK-3/2

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.32

  • Additional Feature:

    FREE WHEELING DIODE

  • Application:

    POWER

  • Case Connection:

    CATHODE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.84 V

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    180 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    45 V

  • Reverse Current-Max:

    100 µA

  • Reverse Test Voltage:

    45 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

STPS2045CG-TR Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern is recommended for optimal thermal performance.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement proper thermal management, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
  • The STPS2045CG-TR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials and equipment, and ensure that the device is properly grounded during handling.
  • Yes, the STPS2045CG-TR is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions and design guidelines to ensure reliable operation.
  • Check the input voltage, output voltage, and current consumption to identify the root cause of the issue. Verify that the device is properly configured and that the output capacitor values meet the recommended specifications.
