STPS20M120SR - STMicroelectronics

Description: STMicroelectronics 120V 20A, Schottky Diode, 3-Pin I2PAK (TO-262) STPS20M120SR

Download STPS20M120SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STPS20M120SR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

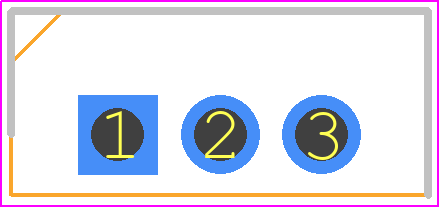

STPS20M120SR - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - I2PAK (TO-262)
click to zoom
3D Models
STPS20M120SR - STMicroelectronics - 3D model - Transistor Outline, Vertical - I2PAK (TO-262)
click to zoom

STPS20M120SR Details

  • Manufacturer Part Number:

    STPS20M120SR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.84 V

  • JESD-30 Code:

    R-PSIP-T3

  • Non-rep Pk Forward Current-Max:

    240 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Rep Pk Reverse Voltage-Max:

    120 V

  • Reverse Current-Max:

    275 µA

  • Reverse Test Voltage:

    120 V

  • Surface Mount:

    NO

  • Technology:

    SCHOTTKY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

STPS20M120SR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STPS20M120SR is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within the -40°C to 125°C range for optimal performance and reliability.
  • To ensure proper cooling, make sure to provide a sufficient heat sink or thermal interface material between the device and the PCB. The datasheet recommends a thermal resistance of less than 10°C/W for optimal thermal performance.
  • The recommended gate drive voltage for the STPS20M120SR is between 10V and 15V, with a maximum gate-source voltage of ±20V. However, it's essential to consult the datasheet for specific gate drive requirements and ensure compatibility with your application.
  • Yes, the STPS20M120SR is suitable for high-frequency switching applications up to 100 kHz. However, it's crucial to consider the device's switching losses, thermal performance, and PCB layout to ensure reliable operation.
  • To protect the STPS20M120SR from overvoltage and overcurrent, implement a suitable protection circuit, such as a voltage clamp or a current limiter, in your design. Additionally, ensure that your application's voltage and current ratings are within the device's specified limits.
