STPS30170CG - STMicroelectronics

STPS30170CG Details

• Manufacturer Part Number:

  STPS30170CG

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

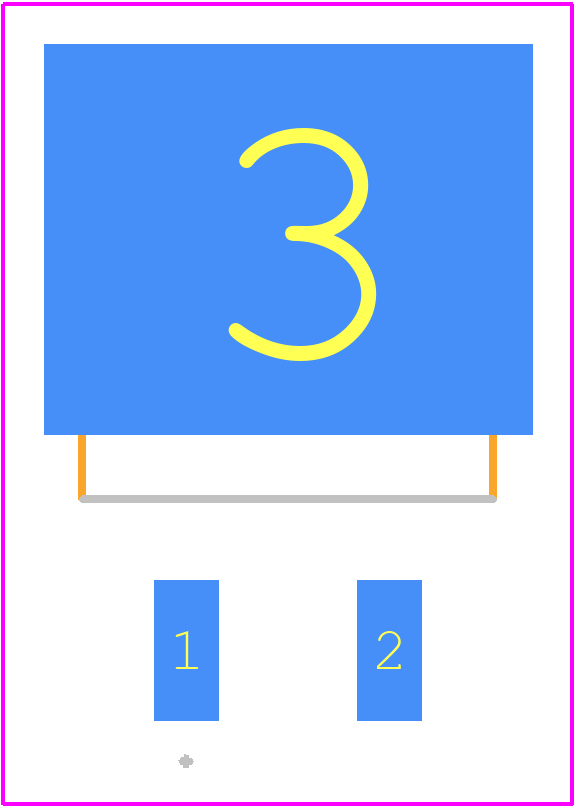

• Part Package Code:

  TO-263

• Package Description:

  D2PAK-3/2

• Pin Count:

  3

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  LOW LEAKAGE CURRENT

• Application:

  HIGH VOLTAGE POWER

• Case Connection:

  CATHODE

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1 V

• JEDEC-95 Code:

  TO-263AB

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  220 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Output Current-Max:

  15 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  170 V

• Reverse Current-Max:

  20 µA

• Reverse Test Voltage:

  170 V

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30
