STPS60L30CKY-TR - STMicroelectronics

Description: Diode Array 1 Pair Common Cathode Schottky 30 V 30A Surface Mount 20-SOIC (0.433", 11.00mm Width) Exposed Pad

Download STPS60L30CKY-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

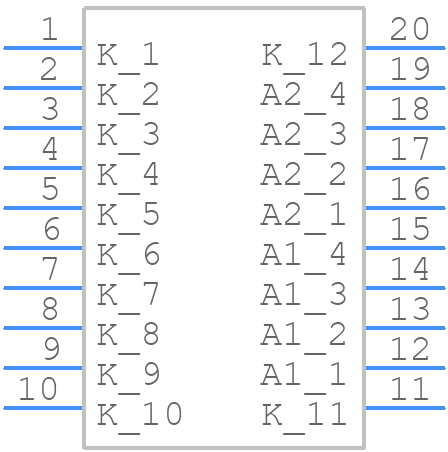

STPS60L30CKY-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

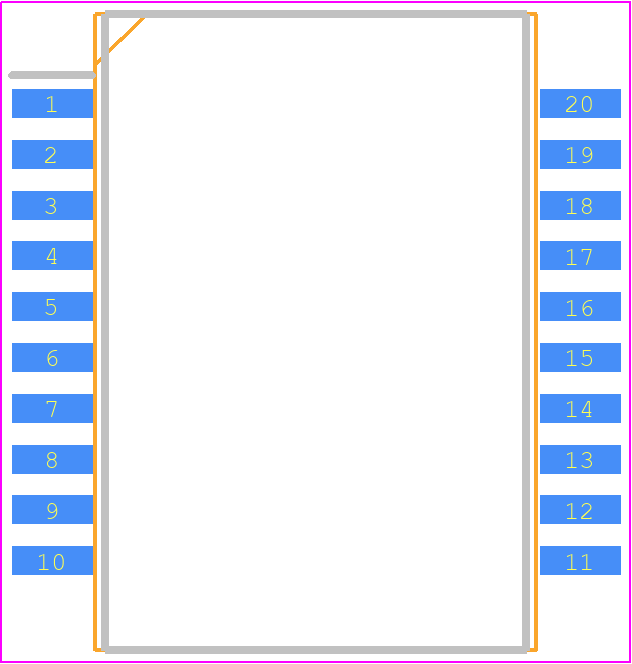

STPS60L30CKY-TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20 (slug up)
click to zoom
3D Models
STPS60L30CKY-TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20 (slug up)
click to zoom

STPS60L30CKY-TR Details

  • Manufacturer Part Number:

    STPS60L30CKY-TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Application:

    FAST RECOVERY POWER

  • Case Connection:

    CATHODE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.49 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Non-rep Pk Forward Current-Max:

    250 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    30 V

  • Reverse Current-Max:

    2000 µA

  • Reverse Test Voltage:

    30 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

STPS60L30CKY-TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STPS60L30CKY-TR in the application note AN5042. It suggests using a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, and ensure good thermal conductivity between the device and the heat sink.
  • The maximum allowed voltage on the gate driver input is 20V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Yes, the STPS60L30CKY-TR is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching losses, thermal performance, and layout to ensure reliable operation.
  • To protect the device from overcurrent and overvoltage conditions, consider using external protection circuits, such as overcurrent protection (OCP) and overvoltage protection (OVP) circuits. Additionally, ensure that the device is operated within its recommended specifications.
