STR05S05 footprint, schematic symbol and 3D model by XP POWER

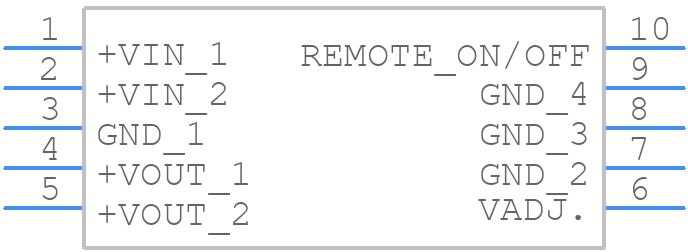

Symbol

click to zoom

PCB Footprints

STR05S05 - XP POWER PCB footprint - Other - Other - STR05S15

click to zoom

3D Models

STR05S05 - XP POWER - 3D model - Other - STR05S15

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STR05S05
Part Number STR05S05
Manufacturer XP POWER
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - STR05S15
Released Date Aug 6, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

STR05S05 Details

Manufacturer Part Number:
STR05S05
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-10
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
XP Power
YTEOL:
0
Analog IC - Other Type:
SWITCHING REGULATOR
Input Voltage-Max:
32 V
Input Voltage-Min:
6.5 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDMA-G10
Length:
15.3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.5 A
Output Voltage-Max:
8 V
Output Voltage-Min:
3 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,10LEAD,.49
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
245
Seated Height-Max:
9.05 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
380 kHz
Terminal Form:
GULL WING
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
9.6 mm

STR05S05 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat effectively. A minimum of 1 square inch of copper is recommended, and the use of thermal vias can further improve heat dissipation.
To ensure reliable start-up, XP Power recommends a soft-start circuit to limit the inrush current during power-on. Additionally, a sufficient input capacitance (e.g., 10uF) should be used to filter out input voltage ripple and noise.
The maximum allowed capacitance on the output of the STR05S05 is 10uF. Exceeding this value may cause instability or oscillation in the converter.
While the STR05S05 is rated for operation up to 85°C, XP Power recommends derating the output power by 2.5% per degree above 70°C to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
XP Power recommends using a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit to protect the STR05S05 from input voltage surges or spikes. This can help prevent damage to the device and ensure reliable operation.
