Part Image

STR05S3V3 - XP POWER

Description: Non-Isolated DC/DC Converters DC-DC CONV, SMD, SWITCHING REG, 0.5A

Download STR05S3V3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

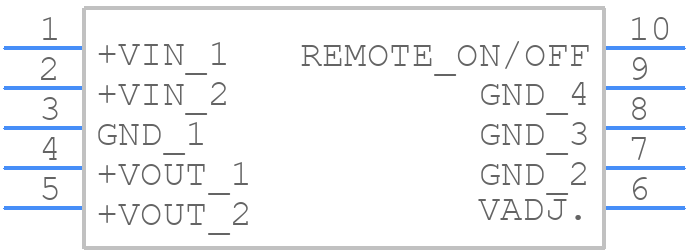

Symbol
STR05S3V3 - XP POWER - PCB symbol
click to zoom
PCB Footprints
STR05S3V3 - XP POWER PCB footprint - Other - Other - STR05S3V3-1
click to zoom
3D Models
STR05S3V3 - XP POWER - 3D model - Other - STR05S3V3-1
click to zoom

STR05S3V3 Details

  • Manufacturer Part Number:

    STR05S3V3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-G10

  • Length:

    15.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,10LEAD,.49

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    9.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    380 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.6 mm

STR05S3V3 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat effectively. A minimum of 1 square inch of copper is recommended, and the use of thermal vias can further improve heat dissipation.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent high inrush currents. Additionally, a minimum input capacitance of 10uF is recommended to ensure stable operation.
  • The maximum allowable capacitance on the output of the STR05S3V3 is 100uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • While the STR05S3V3 is rated for operation up to 85°C, XP Power recommends derating the output power by 2.5% per degree above 70°C to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
  • XP Power recommends a fuse rating of 1A to 2A, depending on the input voltage and the maximum expected inrush current. The fuse should be fast-acting to prevent damage to the device in case of an overcurrent condition.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STR05S3V3 Overview

Use the download button to access the STR05S3V3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STR05, or try a keyword search, such as Switching Regulator or Controllers
