XP Power recommends a PCB layout with a solid copper ground plane and a minimum of 2oz copper thickness to ensure optimal thermal performance. Additionally, keeping the input and output capacitors close to the module can help reduce noise and improve efficiency.
To ensure reliable start-up and operation with a high-capacitance output load, XP Power recommends adding a soft-start circuit or a current-limiting resistor in series with the output to limit the inrush current. Additionally, the output capacitors should be selected to have a low equivalent series resistance (ESR) to minimize voltage droop during start-up.
According to XP Power, the maximum allowed input voltage ripple for reliable operation of the STS1024S3V3 is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance, efficiency, and reliability.
While the STS1024S3V3 is rated for operation up to 80°C, XP Power recommends derating the output power by 2.5% per degree above 60°C to ensure reliable operation in high-temperature environments. Additionally, the module's thermal design and heat sinking should be carefully considered to prevent overheating.
XP Power recommends following a systematic troubleshooting approach, starting with visual inspection of the module and PCB for signs of physical damage or overheating. Next, measure the input and output voltages, currents, and temperatures to identify any anomalies. If necessary, consult the module's schematic diagram and bill of materials to identify potential fault locations. Finally, contact XP Power's technical support for further assistance if needed.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STS1024S3V3 Overview

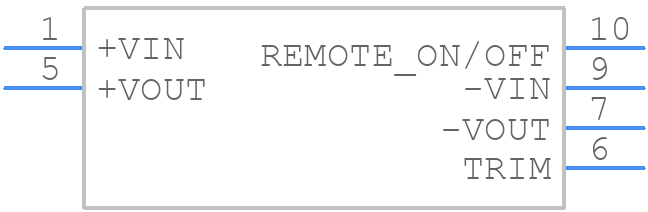

Use the download button to access the STS1024S3V3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STS10,
or try a keyword search, such as Switching Regulator or Controllers
