STSAFA110S8SPL02 - STMicroelectronics

Description: Authentication, state-of-the-art security for peripherals and IoT devices

Download STSAFA110S8SPL02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

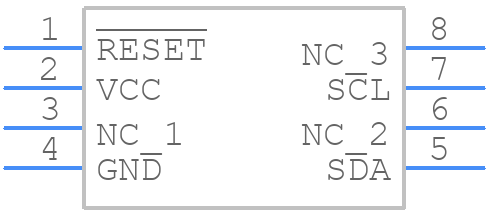

STSAFA110S8SPL02 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSAFA110S8SPL02 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8N
click to zoom
3D Models
STSAFA110S8SPL02 - STMicroelectronics - 3D model - Small Outline Packages - SO8N
click to zoom

STSAFA110S8SPL02 Details

  • Manufacturer Part Number:

    STSAFA110S8SPL02

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9.19

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

STSAFA110S8SPL02 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a thermal pad or a heat sink with a thermal interface material to dissipate heat. Ensure good airflow and avoid blocking the airflow around the device.
  • Power up the device in the following sequence: VCC, then AVDD, and finally DVDD. Ensure that the power supplies are stable and within the recommended voltage range.
  • Power down the device in the reverse sequence: DVDD, then AVDD, and finally VCC. Ensure that the power supplies are turned off in a controlled manner to prevent damage.
  • Use 100nF to 1uF ceramic capacitors for decoupling, placed as close as possible to the device's power pins. Use a 10uF to 22uF electrolytic capacitor for bulk decoupling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSAFA110S8SPL02 Overview

Use the download button to access the STSAFA110S8SPL02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSAF, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
