STSPIN32F0 - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers Advance BLDC Contrlr w/Embedded STM32 MCU

Download STSPIN32F0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

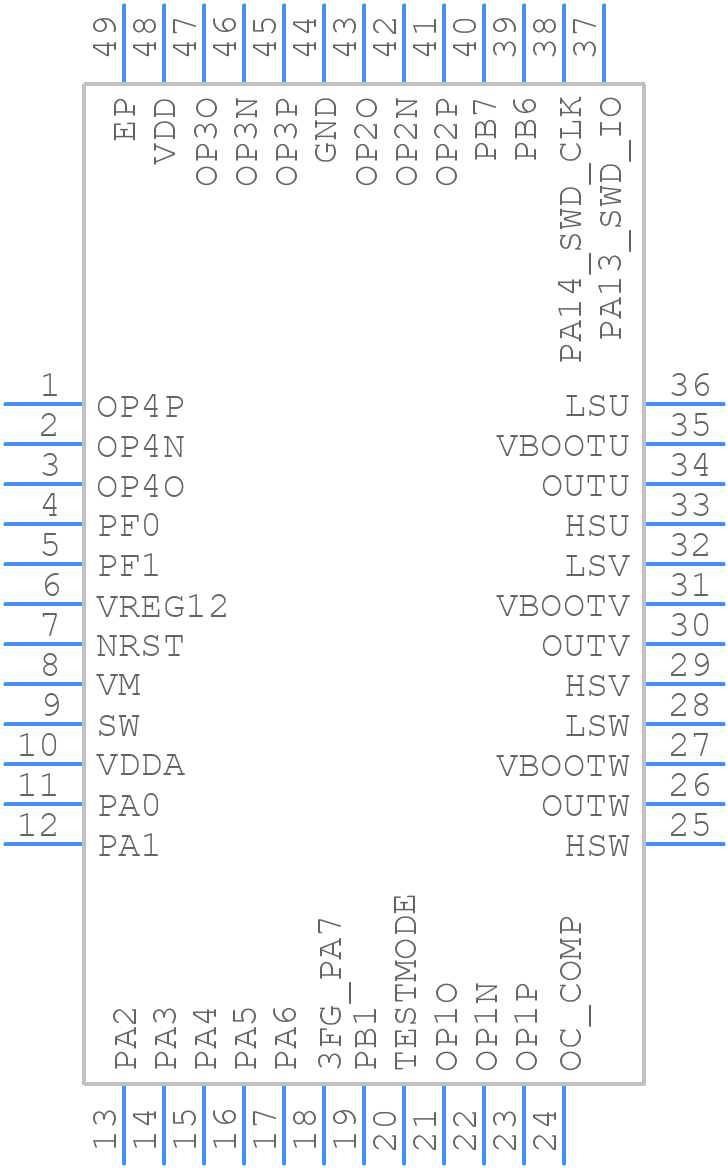

STSPIN32F0 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN32F0 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN48_1
click to zoom
3D Models
STSPIN32F0 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN48_1
click to zoom

STSPIN32F0 Details

  • Manufacturer Part Number:

    STSPIN32F0

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFN-48

  • Manufacturer Package Code:

    VFQFPN 48 7x7x1.0

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-09-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STSPIN32F0 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the motor using STSPIN32F0 is 16V. However, it's recommended to operate within the 10V to 15V range for optimal performance and to prevent overheating.
  • The STSPIN32F0 can be configured for different motor types by adjusting the motor parameters such as the number of poles, motor resistance, and inductance. This can be done through the SPI interface using the dedicated registers and commands.
  • The maximum current that the STSPIN32F0 can handle is 1.5A per phase. However, the actual current handling capability may vary depending on the application and the motor used.
  • The STSPIN32F0 has a built-in overcurrent protection feature that can be enabled through the OCPTH register. The device can detect overcurrent conditions and automatically shut down the motor to prevent damage.
  • Yes, the STSPIN32F0 can be used for BLDC motor control. The device has a dedicated BLDC mode that allows for sensorless control of BLDC motors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN32F0 Overview

Use the download button to access the STSPIN32F0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
