STSPIN32F0601 - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers 600V three-phase controller with MCU

Download STSPIN32F0601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STSPIN32F0601 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

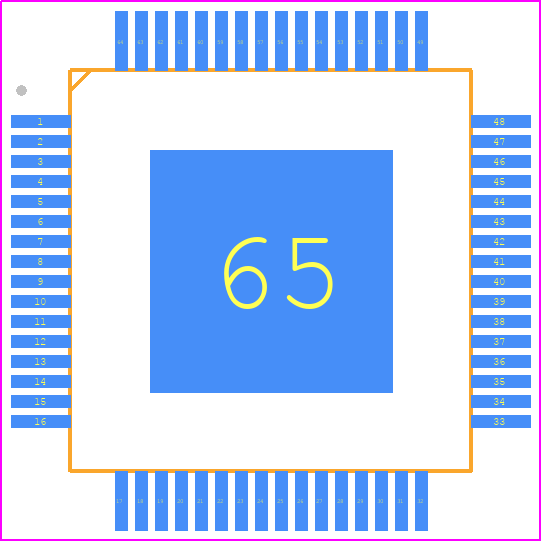

STSPIN32F0601 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 10x10 64L
click to zoom
3D Models
STSPIN32F0601 - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 10x10 64L
click to zoom

STSPIN32F0601 Details

  • Manufacturer Part Number:

    STSPIN32F0601

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-09-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • uPs/uCs/Peripheral ICs Type:

    Motion Control Microcontroller

STSPIN32F0601 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STSPIN32F0601 is 32 kHz, but it can be overclocked up to 64 kHz with some limitations.
  • To configure the STSPIN32F0601 for 3-phase brushless motor control, you need to set the device in 3-phase mode, configure the PWM frequency and dead-time, and set the correct commutation sequence. Refer to the application note AN5155 for more details.
  • The maximum current rating of the STSPIN32F0601 is 1.5 A per phase, but it can be increased up to 3 A per phase with proper heat sinking and thermal management.
  • The STSPIN32F0601 has a built-in overcurrent protection feature that can be enabled by setting the OCP threshold and timeout values. You can also use external sense resistors and a comparator to implement overcurrent protection.
  • Yes, the STSPIN32F0601 can be used for stepper motor control, but it requires additional external circuitry to generate the stepper motor control signals. You can use the device's PWM outputs to drive the stepper motor coils.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN32F0601 Overview

Use the download button to access the STSPIN32F0601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
