Part Image

STSPIN32F0601TR - STMicroelectronics

Description: Advanced 600 V three-phase BLDC controller with embedded STM32 MCU

Download STSPIN32F0601TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STSPIN32F0601TR - STMicroelectronics - PCB symbol
click to zoom

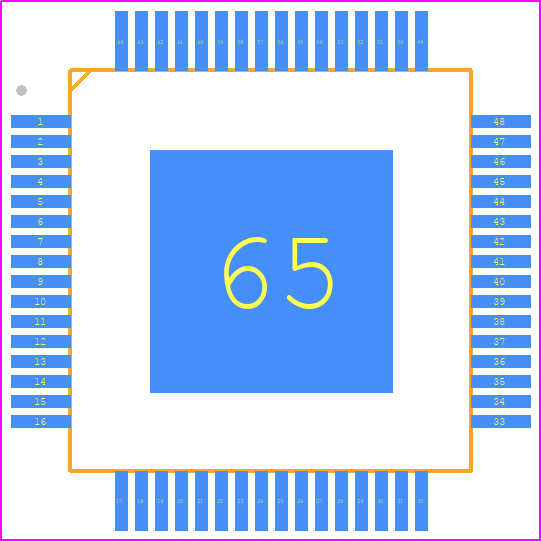

PCB Footprints
STSPIN32F0601TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 10x10 64L
click to zoom
3D Models
STSPIN32F0601TR - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 10x10 64L
click to zoom

STSPIN32F0601TR Details

  • Manufacturer Part Number:

    STSPIN32F0601TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-09-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • uPs/uCs/Peripheral ICs Type:

    Motion Control Microcontroller

STSPIN32F0601TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STSPIN32F0601TR is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within the industrial temperature range of -40°C to 125°C for optimal performance and reliability.
  • To minimize EMI and noise, it's essential to follow good PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive signals away from noisy ones. Additionally, STMicroelectronics provides a recommended PCB layout and thermal design guide in the application note AN5155.
  • The recommended decoupling capacitor value for the STSPIN32F0601TR is 100nF to 1uF, placed as close as possible to the device's power pins (VCC and GND). This helps to filter out high-frequency noise and ensure stable operation.
  • The STSPIN32F0601TR is a highly configurable device, and the configuration depends on the specific motor type and application. STMicroelectronics provides a range of application notes and software tools, such as the STSPIN32F0601TR evaluation board and the STM32CubeMX software, to help engineers configure the device for their specific use case.
  • The maximum current rating for the STSPIN32F0601TR is 2A per phase, but the actual current rating depends on the specific application and motor type. To calculate the maximum current for your application, you need to consider factors such as the motor's winding resistance, inductance, and back-EMF, as well as the device's thermal performance and power dissipation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN32F0601TR Overview

Use the download button to access the STSPIN32F0601TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
