STSPIN32F0A - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers Advanced BLDC controller with embedded STM32 MCU

Download STSPIN32F0A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

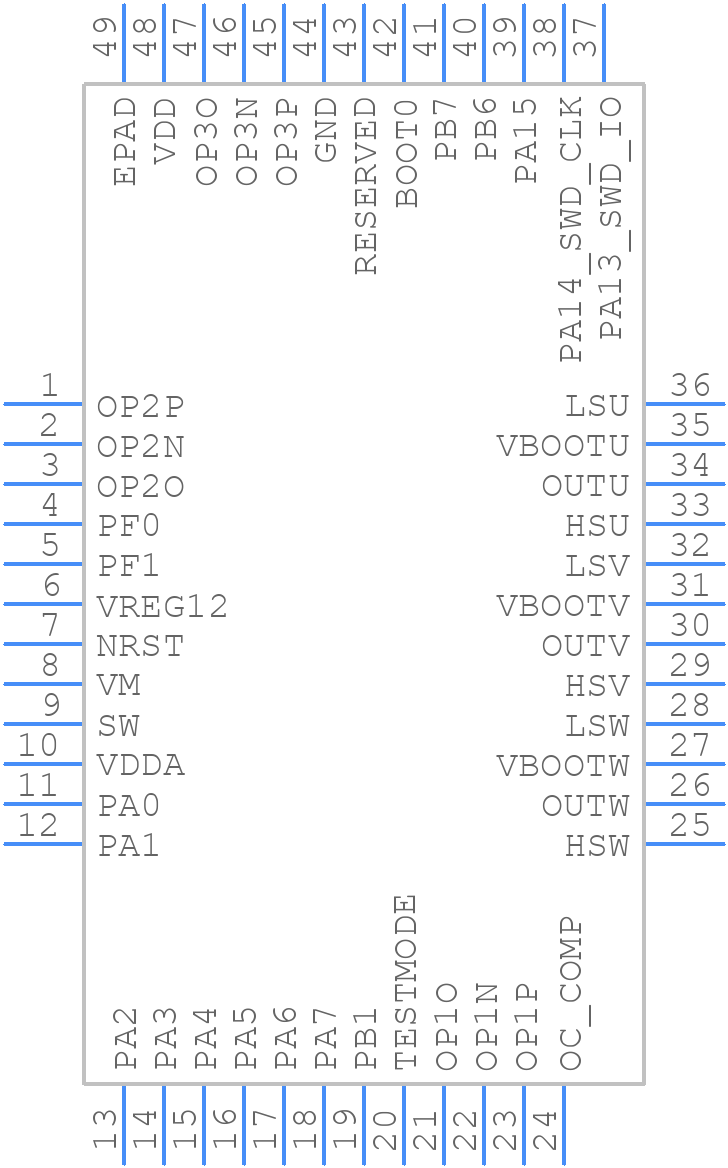

Symbol
STSPIN32F0A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN32F0A - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN48 7 x 7 x 1.0 - 48L, pitch 0.5
click to zoom
3D Models
STSPIN32F0A - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN48 7 x 7 x 1.0 - 48L, pitch 0.5
click to zoom

STSPIN32F0A Details

  • Manufacturer Part Number:

    STSPIN32F0A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2017-09-22

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    6.7 V

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STSPIN32F0A Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the motor using STSPIN32F0A is 16V. However, it's recommended to operate within the 12V to 15V range for optimal performance and reliability.
  • The STSPIN32F0A can be configured for different motor types by adjusting the motor control registers and the PWM frequency. For example, for a stepper motor, you would set the motor control register to 'stepper' mode and adjust the PWM frequency to match the motor's step rate.
  • The maximum current that the STSPIN32F0A can handle is 1.5A per phase. However, it's recommended to operate within the 1A to 1.2A range for optimal performance and reliability.
  • The STSPIN32F0A has a built-in overcurrent protection feature that can be enabled by setting the OCP (Overcurrent Protection) register. The OCP threshold can be adjusted by writing to the OCP register.
  • Yes, the STSPIN32F0A can be used for brushless DC motor control. However, it requires additional external circuitry and programming to implement the necessary commutation logic.
